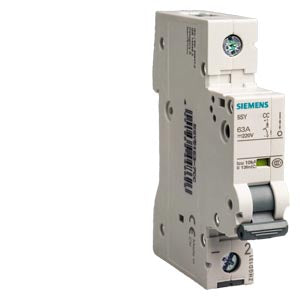

Siemens Miniature circuit breaker, 1-pole, 230/400V, 15kA, 1A Siemens
View on Siemens 📄 Datasheet
Siemens

Siemens Miniature circuit breaker, 1-pole, 230/400V, 15kA, 1A Part number 5SY7101-7CC

EAN / Barcode 4001869449159
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
Category Power Distribution
Sub-category Circuit Breaker
ETIM Class Miniature circuit breaker (MCB)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens 5SY7101-7CC is a high-performance miniature circuit breaker engineered for reliable electrical protection in commercial and industrial applications. This 1-pole circuit breaker features a 1 A current rating with 230/400 V operational voltage and 15 kA breaking capacity, making it ideal for protecting very low-current single-phase electrical circuits and sensitive electronic equipment from overloads and short circuits.

Key Features

  • High Breaking Capacity: 15 kA breaking capacity ensures reliable protection against high fault currents
  • 1-Pole Configuration: Provides protection for single-phase electrical systems and individual circuits
  • C-Type Characteristic: Optimized for general applications with moderate inrush currents
  • Very Low Current Rating: 1 A rating perfect for control circuits and sensitive electronic equipment
  • Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
  • Reliable Operation: Engineered for consistent performance in demanding electrical environments

Technical Specifications

  • Current Rating: 1 A
  • Voltage Rating: 230/400 V
  • Breaking Capacity: 15 kA
  • Number of Poles: 1
  • Trip Characteristic: C-type
  • Net Weight: 0.164 kg
  • Depth: 70 mm (D=70 mm)
  • Country of Origin: Germany
  • EAN: 4001869190556

Applications

This miniature circuit breaker is particularly suitable for:

  • Control circuit protection
  • Electronic equipment protection
  • Instrumentation circuits
  • Signal circuit protection
  • Auxiliary equipment circuits
  • Low-power lighting circuits
  • Commercial electrical installations
  • Industrial control panels
  • Distribution boards
  • Sensitive measurement equipment
  • Communication equipment protection

Compliance & Certifications

  • RoHS Compliance: Compliant since January 1, 2006
  • WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
  • REACH Regulation: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements
  • Export Control: AL: N / ECCN: N
  • Product Class: B - Return restricted, contact Siemens partner for returns

Product Classification

  • eClass: 27-14-19-01 (versions 6-14)
  • ETIM: EC000042 (versions 7-9)
  • UNSPSC: 39-12-16-03
  • Product Group: 5525

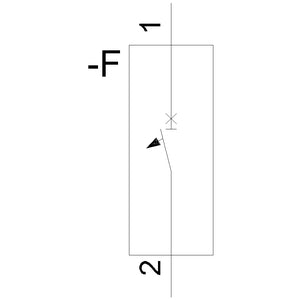

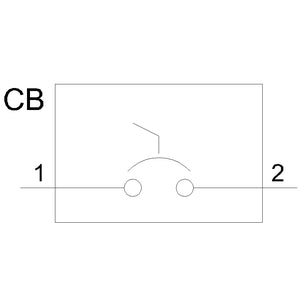

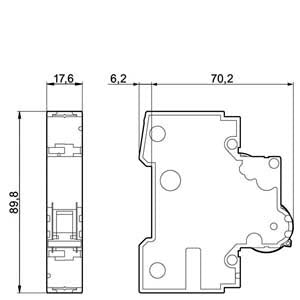

Download existing graphical data for this product:

Article Number: 5SY7101-7CC

Packaging: Single unit per package

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating-25 °C
Article Number (Market Facing Number)5SY7101-7CC
Built-in depth70 mm
Connectable conductor cross section multi-wired0.75 mm²
Connectable conductor cross section solid-core0.75 mm²
Country of originChina
Degree of protection (IP)IP20
Frequency50 Hz
Net Weight (kg)0.160 Kg
Number of poles (total)1
Number of protected poles1
Over voltage category3
Pollution degree3
Power loss1.1 W
Product DescriptionMiniature circuit breaker 230/400 V 15kA, 1-pole, C, 1A
Product Lifecycle (PLM)PM300: Active Product
Rated current1 A
Rated impulse withstand voltage Uimp4 kV
Rated insulation voltage Ui440 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
Rated voltage230 V
Release characteristicC
RoHS Conformity DateSince: 01.04.13
Voltage typeAC
WEEE (2012/19/EU) Take-Back ObligationYes
Width in number of modular spacings1
View complete specifications on Siemens
