Product Overview

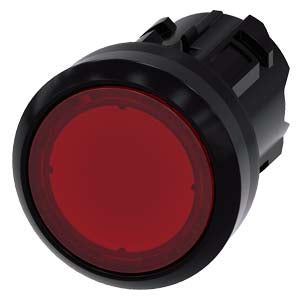

The SIRIUS ACT 3SU1001-0AB20-0AA0 is a premium 22 mm round illuminated pushbutton designed for industrial control applications requiring visual feedback and status indication. This red, plastic flat momentary contact pushbutton with integrated illumination capability combines robust construction with clear visual signaling for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with flat button design
• High-grade plastic front ring and collar construction
• Red actuator button with black plastic front ring
• Integrated illumination for clear visual status feedback
• Snap-on mounting system without tools required
• Translucent button cap for optimal light transmission

Operating Mechanism:

• Momentary Contact Operation: Returns to normal state when released
• Illuminated Design: Built-in LED compatibility for status indication
• Visual Feedback: Clear illumination through red translucent actuator
• Status Indication: Ideal for alarm signals and critical operational feedback
• Red Color Coding: Universal indication for stop, alarm, or critical functions

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Front Opening: 29.5 mm width x 11 mm height
• Contact Configuration: 1 NO (Normally Open) - momentary
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)
• Illumination: LED compatible for status indication

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Emergency and alarm signaling systems
• Manufacturing equipment with critical status indication
• Safety systems with illuminated warning functions
• Control panels requiring stop/alarm indication
• Process control systems with alarm visualization
• Equipment requiring illuminated operational feedback
• Red-coded warning and alarm identification systems
• Applications requiring momentary control with visual confirmation

Illumination Features

• LED Integration: Compatible with 3SU14 series LED modules
• Visual Status: Clear indication of alarm or operational state
• Red Color Coding: Excellent light transmission through red actuator for warning signals
• Energy Efficient: LED technology for low power consumption
• Long Life: Extended operational life with LED illumination
• High Visibility: Optimal recognition for critical applications

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Illumination Integration: Easy LED module integration for status indication

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.015 kg
• Country of Origin: China
• EAN: 4011209955707
• UPC: 804766063640
• Package Dimensions: 30 x 38 x 30 mm

Download existing graphical data for this product:

Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats
• 2D Dimension Drawings
• EPLAN Macros

Configuration Tools:

• SIRIUS ACT Online Configurator
• Product Selection Tool

Additional Resources:

• Installation Instructions
• Wiring Diagrams
• LED Module Compatibility Guide
• Compatibility Matrix
