Product Overview

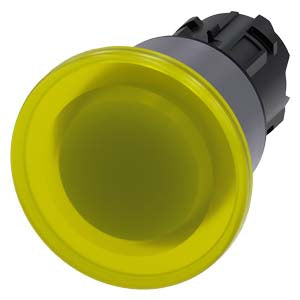

The SIRIUS ACT 3SU1031-1BA30-0AA0 is a premium 22 mm round illuminated mushroom pushbutton designed for industrial control applications requiring emergency stop functionality and visual status indication. This yellow, plastic with metal front ring mushroom pushbutton combines robust construction with 40 mm actuator head and pull-to-unlatch mechanism for demanding industrial environments requiring both safety control activation and illumination indication.

Key Features Design & Construction:

• 22 mm round mounting diameter with mushroom pushbutton design
• High-grade plastic construction with metal front ring for enhanced durability
• Yellow plastic actuator with 40 mm mushroom head for high visibility
• Illuminated function with latching switching capability
• Pull-to-unlatch mechanism for safety compliance
• Snap-on mounting system without tools required
• Durable construction for safety-critical applications

Switching Function:

• Latching Operation: Maintains engaged position until manually reset
• Pull-to-Unlatch Mechanism: Safety-compliant reset operation
• 40 mm Mushroom Head: Large actuator surface for emergency activation
• Illuminated Design: Integrated illumination capability for status indication
• Yellow Color Coding: International safety standard compliance for emergency stop
• Metal Front Ring: Enhanced mechanical protection and professional appearance

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Actuator Type: 40 mm yellow plastic mushroom with metal front ring
• Operation Type: Latching with pull-to-unlatch mechanism
• Illumination: Compatible with LED modules
• Mechanical Life: Extended switching cycle life
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• Emergency stop safety standards compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications Ideal for use in:

• Emergency stop safety systems with visual confirmation
• Manufacturing equipment emergency shutdown controls
• Process control systems requiring safety stop functions
• Control panels with illuminated emergency stop capabilities
• Industrial machinery safety interlocks
• Safety systems requiring positive engagement confirmation
• Machine control stations with emergency stop functionality
• Critical safety applications requiring pull-to-unlatch operation

Safety Features

• Emergency Stop Function: Designed for critical safety shutdown applications
• Pull-to-Unlatch: Safety-compliant reset mechanism prevents accidental reset
• Visual Status Indication: Illuminated design provides clear operational status
• Large Actuator Surface: 40 mm mushroom head for easy emergency activation
• High Visibility: Yellow color coding meets international safety standards
• Latching Operation: Maintains safe shutdown state until deliberately reset
• Enhanced Durability: Metal front ring provides additional mechanical protection

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Blocks: Compatible with 3SU14 series contact blocks
• LED Modules: Compatible with 3SU14 series LED modules for illumination
• Modular Design: Supports integration with safety control system architectures
• Easy Maintenance: Accessible components for service and replacement

Series Compatibility Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.041 kg
• Country of Origin: China
• EAN: 4011209960428
• UPC: 804766066269
• Package Dimensions: 78 x 104 x 45 mm

Download existing graphical data for this product: Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats

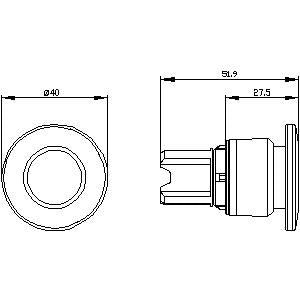

• 2D Dimension Drawings
• EPLAN Macros

Configuration Tools:

• SIRIUS ACT Online Configurator
• Product Selection Tool

Additional Resources:

• Installation Instructions
• Wiring Diagrams
• Contact Block Compatibility Guide
• LED Module Compatibility Guide
• Safety Application Guide
• Compatibility Matrix
