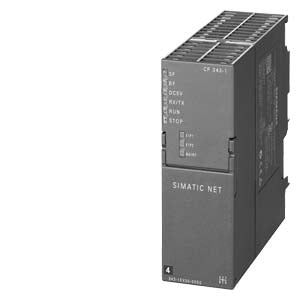

Siemens CP 343-1 Communications processor, 2-port switch
📄 Datasheet
Siemens

Siemens CP 343-1 Communications processor, 2-port switch Part number 6GK7343-1EX30-0XE0

EAN / Barcode 4019169148498
Product Type Control Panel
Product Class PLC communication module
ETIM Class PLC communication module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, SEND/RECEIVE RFC1006, multicast, DHCP, NTC- CPU sync, with and without diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s.

Technical Specifications

Depth120 mm
Height125 mm
Number of HW-interfaces industrial Ethernet2
Number of interfaces PROFINET2
Supporting protocol for other bus systemsYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Transmission rate100000 kBit/s
Type of data transmissionOther
Width40 mm
Part Width35 mm
Part Height129 mm
Part Depth142 mm
Weight297 g
Country of OriginGermany
