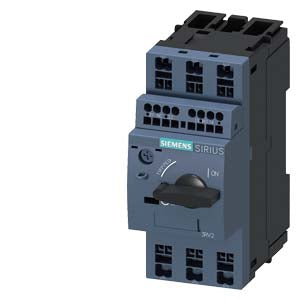

Siemens Circuit breaker for motor protection, 1NO+1NC, size S00

Product Overview

The 3RV2011-1AA25 circuit breaker is designed for motor protection in size S00 applications, featuring CLASS 10 A-release protection with an adjustable current range of 1.1 to 1.6 A and N-release rated at 21 A. This SIRIUS 3RV2 motor starter protector provides comprehensive overload and short-circuit protection for three-phase motors and electrical loads, incorporating spring-type terminal connections and standard switching capacity with integrated transverse auxiliary switches (1 NO+1 NC) for reliable industrial motor control applications.

Key Features

• Current Range: 1.1 to 1.6 A adjustable overload release
• Protection Class: CLASS 10 tripping characteristic according to IEC 60947-4-1
• Size: S00 (45mm width) for compact installations
• Short-Circuit Release: 21 A (N-release) factory-set
• Terminal Type: Spring-type terminals for tool-free connections
• Switching Capacity: Standard switching capacity rating
• Auxiliary Switches: Integrated transverse auxiliary switches (1 NO+1 NC)
• Phase Loss Protection: Built-in phase loss sensitivity
• Manual Operation: Rotary operating mechanism with integrated locking device
• Test Function: Built-in test slide for overload release verification
• Breaking Capacity: Up to 100 kA at 400 V AC
• Operating Temperature: -20°C to +60°C with temperature compensation
• Mounting: DIN rail or screw mounting options
• Weight: 0.844 lb (0.383 kg)
• Series: Advanced SIRIUS 3RV2 generation
• UL Approval: Type E Self Protected Combination Motor Controller

Technical Specifications

• Frequency Rating: 50/60 Hz
• Rated Operational Voltage: Up to 690 V AC
• Poles: 3-pole configuration
• Connection System: Spring-type clamp terminals
• Conductor Cross-Section: 20 to 12 AWG wire range
• Breaking Capacity: Up to 100 kA short-circuit breaking capacity at 400 V AC
• Installation Altitude: Up to 2,000 m above sea level
• Degree of Protection: IP20 front face
• Standards Compliance: IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• Lockout Capability: Padlock shackle diameter 3.5-4.5 mm
• Auxiliary Switch Configuration: 1 NO + 1 NC transverse auxiliary switches
• Rated Permanent Current (Iu): 1.6 A
• Rated Operation Power (AC-3, 400V): 0.55 kW
• Rated Operation Power (AC-3, 230V): 0.25 kW
• Trip Time: 10 seconds or less at rated current
• Dimensions: 106 mm H x 45 mm W x 96 mm D

Applications

The 3RV2011-1AA25 is suitable for protecting medium to larger three-phase motors and electrical loads in industrial automation applications where reliable overload and short-circuit protection is required for motor currents between 1.1-1.6 A with auxiliary switch feedback requirements. It provides inverse time-delayed protection against overload conditions and instantaneous protection against short-circuits, making it ideal for motor drives, instrumentation systems, automation equipment, precision machinery, conveyor systems, pump panels, mass production lines, HVAC installations, and SIRIUS modular system integration requiring size S00 protection for motors up to 0.55 kW at 400V with integrated auxiliary contact functionality.

Operation

When an overload occurs, the motor current rises above the set rated current, heating the integrated bimetal element and causing the device to trip through thermal-magnetic operation. For short-circuit conditions, the electromagnetic release provides instantaneous protection at 21 A. The rotary operating mechanism allows manual on/off operation with clear position indication and trip status display. The integrated transverse auxiliary switches provide 1 NO + 1 NC contacts for status feedback and control circuit integration. The spring-type terminals enable tool-free installation and maintenance, reducing installation time. The built-in test function enables verification of overload release operation without electrical load. After tripping, the device must be manually reset by moving the rotary switch to OFF position before reclosing.

Product Information

• Net Weight: 0.844 lb (0.383 kg)
• Packaging Dimensions: 2.067 x 4.724 x 4.193 inches
• EAN: 4011209841116
• UPC: 662643921816
• Country of Origin: Germany
• Product Class: Standard product, returnable

Compliance & Environmental

• RoHS Compliance: Yes (since 10/01/2009)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, EN 60947-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, EN 60947-4-1
• UL Approval: Type E Self Protected Combination Motor Controller
• Global Approvals: IEC, UL/CSA, ATEX, IEC Ex
• Climate-Proof Design: Optimized for use in various environmental conditions
