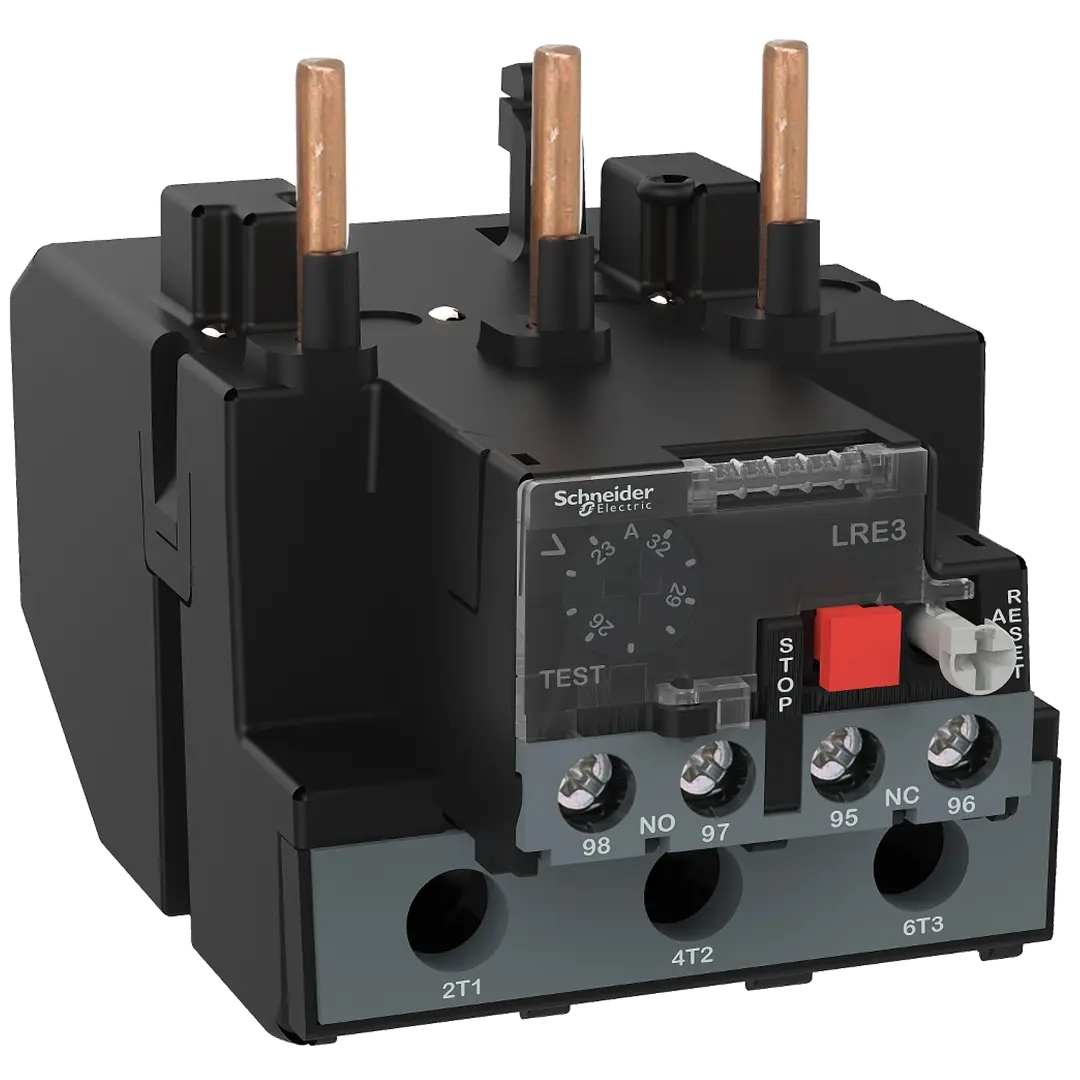

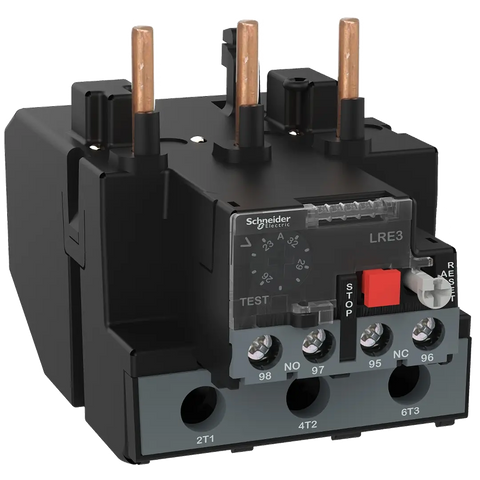

Name: Schneider TVS Thermal Overload Relay, 30...40A
Brand: Schneider Electric
SKU: LRE355

Schneider TVS Thermal Overload Relay, 30...40A - Rubicon Partner Portal

EasyPact TVS thermal overload relays are designed to cover the range of motor ratings up to 630 A, which could be stand-alone or optional direct mounted under EasyPact TVS. The thermal overload is renowned for the ranges for simplicity and flexibility, ease of installation. with the forefront of the design...

Vendor: Schneider Electric

Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.

Availability: Out Of Stock

Product type: Control Panel

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

Range	Easy TeSys
Range of product	Easy TeSys Protect
Product or component type	Differential thermal overload relay
Device short name	LRE
Relay application	Motor protection
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Product compatibility	LC1E40...95
network type	AC
Network frequency	50...60 Hz
Mounting support	Under contactor Plate, with specific accessories Rail, with specific accessories
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Signalling function	Relay trip indicator
Thermal protection adjustment	30…40 A
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Mechanical robustness	Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 GN conforming to IEC 60068-2-6
Auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal	5 A for signalling circuit
[Ue] rated operational voltage	<= 690 V AC
Associated fuse rating	40 A aM for power circuit 100 A gG for power circuit 5 A gG for signalling circuit
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand	6 kV
Local signalling	Trip indicator
Control type	Push-button red stop: Push-button green reset:
Temperature compensation	-20…60 °C
20-Jan-2025	1
Height	54 mm
Width	70 mm
Depth	113 mm
Net weight	0.47 kg
Standards	IEC 60947-4-1 IEC 60947-5-1
Product certifications	EAC
Protective treatment	TH conforming to IEC 60068
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for	-20…60 °C without derating conforming to IEC 60947-4-1
operation	-20…70 °C with derating
Fire resistance	850 °C conforming to IEC 60068-2-1
Dielectric strength	6 kV at 50 Hz conforming to IEC 60255-5
Electromagnetic compatibility	Surge withstand: 6 kV conforming to IEC 60801-5
Warranty	18 months
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	9.000 cm
Package 1 Length	12.000 cm
Package 1 Weight	483.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	9
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.690 kg
