Description

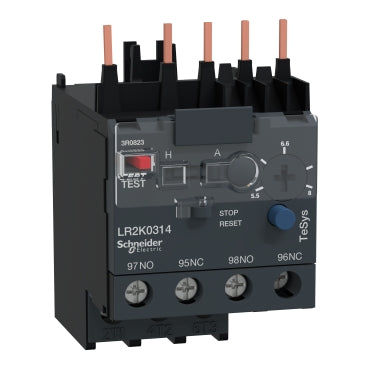

xThis thermal overload relay is built to safeguard motors in the range of 1–1.6 A. It ensures precise tripping and seamless compatibility with multiple mounting options for enhanced operational efficiency.
Specifications
x| IP Rating | IP2X |
| Compliance/Certifications | BS 4941 / CSA / IEC 60947 / NF C 63-650 / UKCA / UL / VDE 0660 |
| Temperature: Operating | -20 °C to 55 °C |
| Part Depth (mm) | 65mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 58mm |
| Weight (g) | 145g |
| Tightening Torque | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1.5 - 4 mm²solid / Screw clamp terminals 2 cable(s) 1.5 - 4 mm²solid / Screw clamp terminals 1 cable(s) 0.75 - 4 mm²flexible without cable end / Screw clamp terminals 2 cable(s) 0.75 - 4 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 0.34 - 2.5 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 0.34 - 1.5 mm²flexible with cable end |
| Max Frequency | <= 400 Hz |
| Type of Voltage | DC / AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / with specific accessories / Rail / with specific accessories / Under contactor |
| Warranty | 18 Months |
