Description

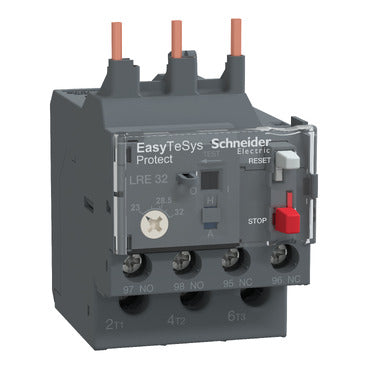

xThe Schneider Electric TVS is a differential thermal overload relay. It connects via Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: solid without cable end. The housing is rated IP20 conforming to IEC 60529 and the unit is specified for -20°C - 60 °C without derating conforming to IEC 60947-4-1 / -20°C - 70 °C with derating. Approvals: EAC.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Operating temperature: -20°C - 60 °C without derating conforming to IEC 60947-4-1 / -20°C - 70 °C with derating
- Colour: Grey
- Mounting: Plate, with specific accessories rail, with specific accessories under contactor
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EAC / IEC 60947-4-1 / IEC 60947-5-1 |
| Temperature: Operating | -20°C - 60 °C without derating conforming to IEC 60947-4-1 / -20°C - 70 °C with derating |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 44.5mm |
| Weight (g) | 130g |
| Packaging size / unit | 1 |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Type | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: solid without cable end |
| Max Frequency | 50 / 60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate, with specific accessories rail, with specific accessories under contactor |
| Colour | Grey |
| RAL Code | RAL 7011 |
