Description

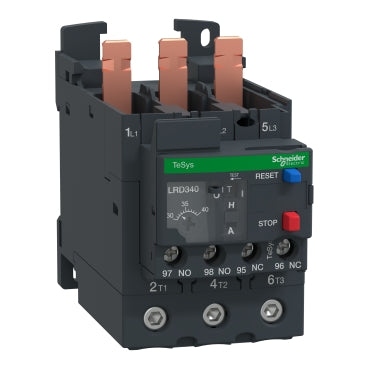

xThis thermal overload relay is suitable for motors in the range of 30–40 A. It delivers reliable performance with advanced thermal protection and easy integration with various motor starters.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | ATEX INERIS / CCC / CSA / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB / T 14048.4 / GB / T 14048.5 / IEC / UKCA / UL / UL 60947-4-1 / UL 60947-5-1 |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 123mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 70mm |
| Weight (g) | 375g |
| Packaging size / unit | 1 / 13 / 208 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible without cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible with cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² solid without cable end / Power circuit: EverLink BTR screw connectors 1 cable(s) 1 - 35 mm² flexible without cable end / Power circuit: EverLink BTR screw connectors 1 cable(s) 1 - 35 mm² flexible with cable end / Power circuit: EverLink BTR screw connectors 1 cable(s) 1 - 35 mm² solid without cable end |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | AC / DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / with specific accessories / Rail / with specific accessories / Under contactor |
| Warranty | 18 Months |
