Description

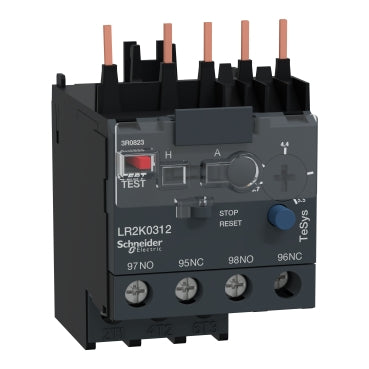

xThis Schneider Electric product is a differential thermal overload relay. It connects via Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end. The housing is rated IP2X conforming to IEC 60529 and the unit is specified for -20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947.
Key specifications
- IP rating: IP2X conforming to IEC 60529
- Operating temperature: -20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947
Specifications
x| IP Rating / Detailed | IP2X conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947,VDE 0660,BS 4941,NF C 63-650 |
| Temperature: Operating | -20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947 |
| Part Depth (mm) | 65mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 58mm |
| Tightening Torque (N.m) | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| Max Frequency | <= 400 Hz |
| Type of Voltage | DC,AC |
| Rated Operating Voltage | <= 690 V for power circuit |
