Description

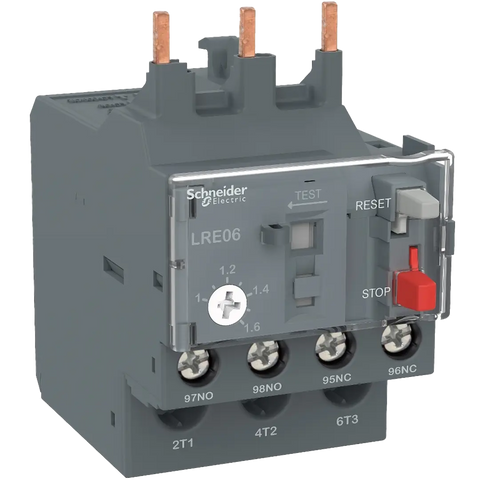

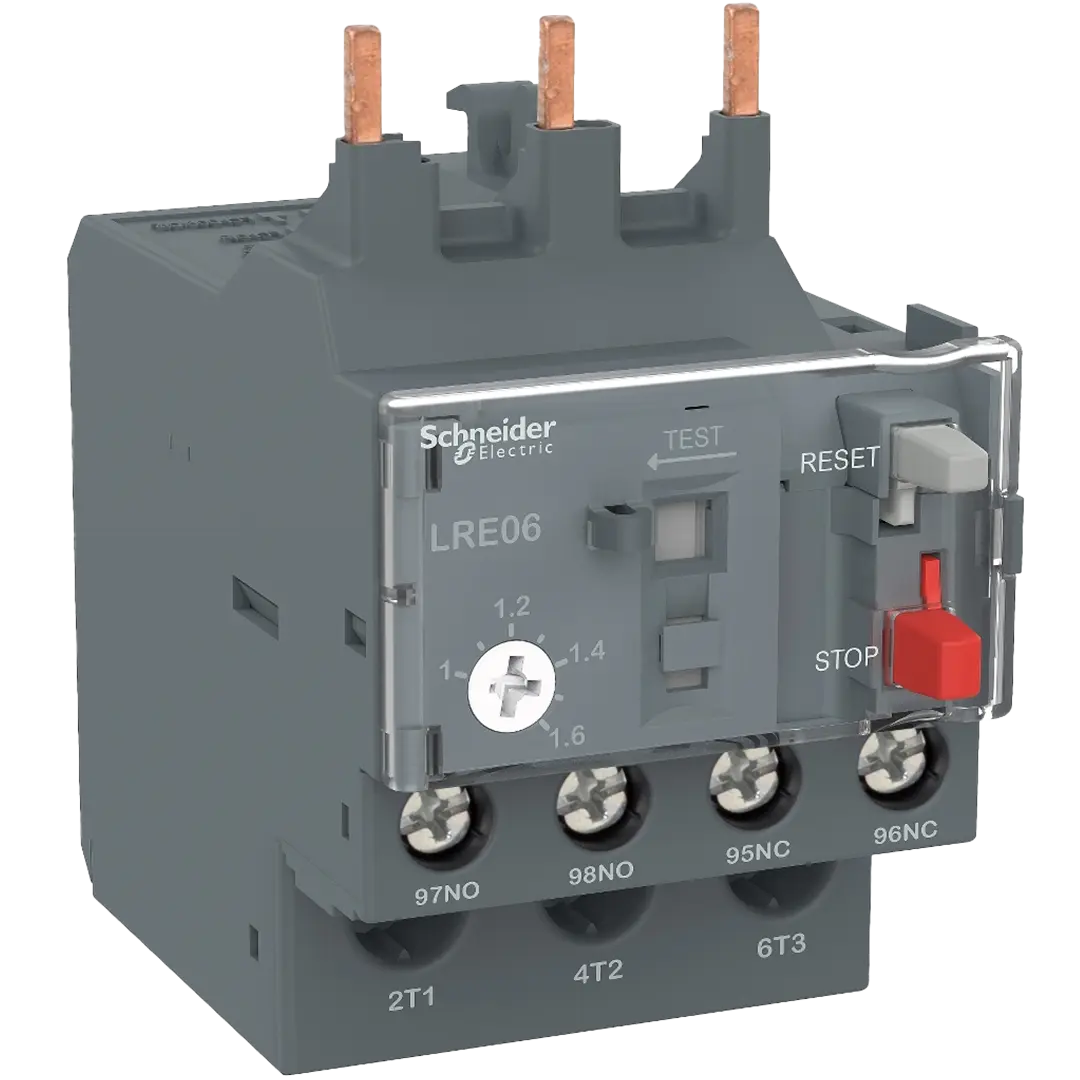

xThis differential thermal overload relay ensures reliable motor protection with adjustable settings from 2.5A to 4A. It is designed for use with Easy TeSys contactors and includes a trip indicator for operational safety.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | EAC / IEC 60947-4-1 / IEC 60947-5-1 |
| Temperature: Operating | France |
| Temperature: Operating | -20°C to 60 °C / -20°C to 70 °C |
| Part Depth (mm) | 70 mm |
| Part Width (mm) | 45 mm |
| Part Height (mm) | 44.5 mm |
| Weight (g) | 130 g |
| Packaging size / unit | 1 / 33 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Type | Power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable end / Signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end / Signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end / Signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | <= 690 V AC |
| Colour | Grey |
| RAL Code | RAL 7011 |
