Schneider TVS Thermal Overload Relay, 17...25A - Rubicon Partner Portal

EasyPact TVS thermal overload relays are designed to cover the range of motor ratings up to 630 A, which could be stand-alone or optional direct mounted under EasyPact TVS. The thermal overload is renowned for the ranges for simplicity and flexibility, ease of installation. with the forefront of the design...

Vendor: Schneider Electric

SKU: LRE322

Availability: In stock

Product type: Control Panel

Please hurry! Only 4 left in stock

Ask an expert

Description
Specifications
Documents

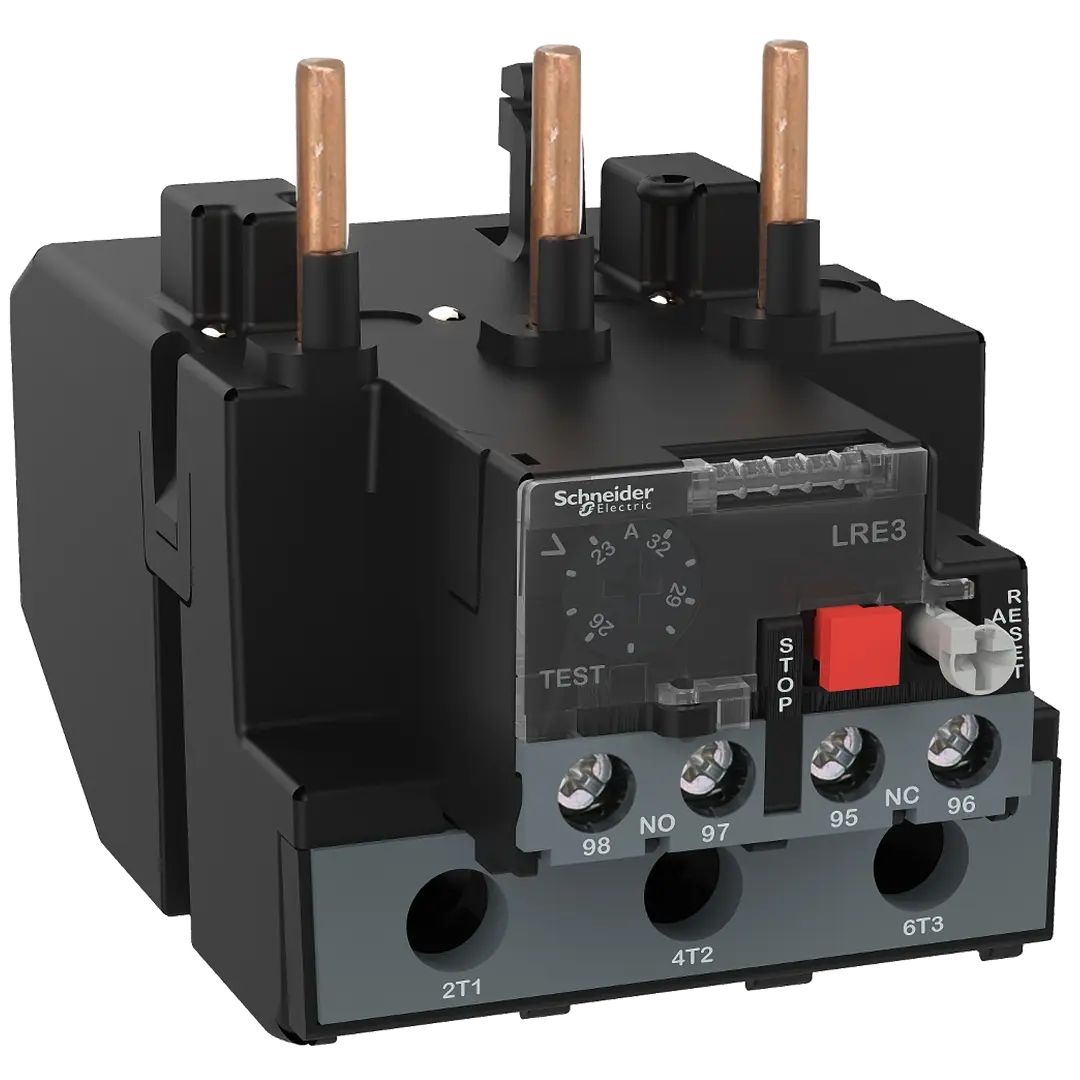

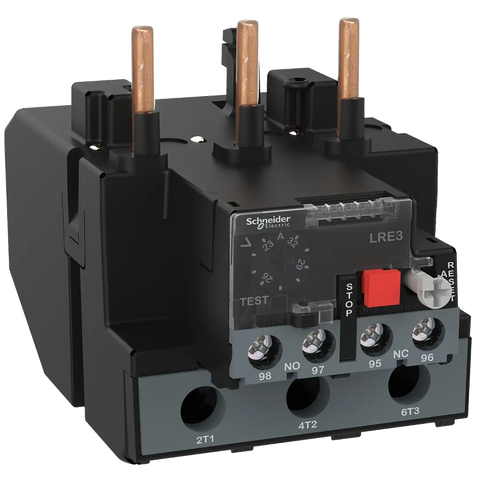

Easy TeSys Differential Thermal Overload Relay 17...25 A - Class 10A

Product Overview

Product Name	Easy TeSys Differential Thermal Overload Relay
Product ID	LRE322
Range	Easy TeSys Protect
Product Type	Differential Thermal Overload Relay
Application	Motor Protection
Thermal Protection Adjustment Range	17…25 A
Tripping Class	Class 10A (IEC 60947-4-1)
Phase Failure Sensitivity	130% of Ir on two phases, last at 0
Mounting Support	Under contactor, plate, or rail (with accessories)
Compatible Contactors	LC1E40...95
Network Type	AC
Network Frequency	50...60 Hz
Color	Grey (RAL 7011)

Features

Manual or automatic reset
Trip auxiliary contact and flag indicator
Direct mounting on EasyPact TVS contactors with screw clamp terminals
Protects unbalanced loads and motors up to 11 kW at 400 VAC
Multi-standard certifications (IEC, UL, CSA, CCC, EAC, Marine)
Green Premium compliant (RoHS/REACH)

Technical Specifications

Auxiliary Contacts	1 NO + 1 NC
Conventional Free Air Thermal Current (Ith)	5 A for signalling circuit
Rated Operational Voltage (Ue)	≤ 690 V AC
Rated Insulation Voltage (Ui)	690 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Associated Fuse Rating	50 A gG (power circuit), 25 A aM (power circuit), 5 A gG (signalling circuit)
Control Type	Push-button red stop, push-button green reset
Temperature Compensation	-20…60 °C
Connections - Terminals	Power circuit: screw clamp terminals 1 x 4…35 mm² (flexible without cable end) Power circuit: screw clamp terminals 1 x 4…35 mm² (flexible with cable end) Power circuit: screw clamp terminals 1 x 4…35 mm² (solid without cable end) Signalling circuit: screw clamp terminals 2 x 1…2.5 mm² (flexible without cable end) Signalling circuit: screw clamp terminals 2 x 1…2.5 mm² (flexible with cable end) Signalling circuit: screw clamp terminals 2 x 1…2.5 mm² (solid without cable end)
Recommended Tightening Torque	Power circuit: 9 N·m Signalling circuit: 1.7 N·m
Dimensions (H x W x D)	54 mm x 70 mm x 113 mm
Net Weight	0.47 kg
