Description

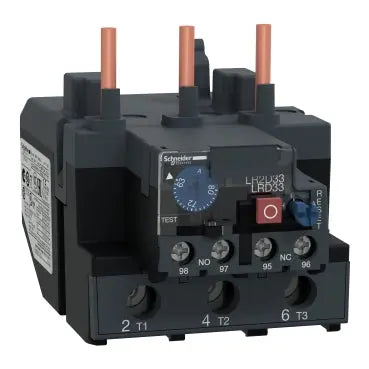

xThis thermal overload relay offers motor protection in the range of 63–80 A. It features robust construction, multiple mounting options, and precise thermal adjustment, ensuring safety and efficiency in operations.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | ATEX INERIS / CCC / CSA / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB / T 14048.4 / GB / T 14048.5 / IEC / UKCA / UL / UL 60947-4-1 / UL 60947-5-1 |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 115mm |
| Part Width (mm) | 70mm |
| Part Height (mm) | 81mm |
| Weight (g) | 510g |
| Packaging size / unit | 1 / 12 / 192 pc(s) |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Type | Power circuit: screw clamp terminals 1 cable(s) 4 - 35 mm² flexible without cable end / Power circuit: screw clamp terminals 1 cable(s) 4 - 35 mm² flexible with cable end / Power circuit: screw clamp terminals 1 cable(s) 4 - 35 mm² solid without cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible without cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible with cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² solid without cable end |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | DC / AC |
| Rated Operating Voltage | 1000 VAC |
| Mounting Type | Plate / with specific accessories / Rail / with specific accessories / Under contactor |
| Warranty | 18 Months |
