Description

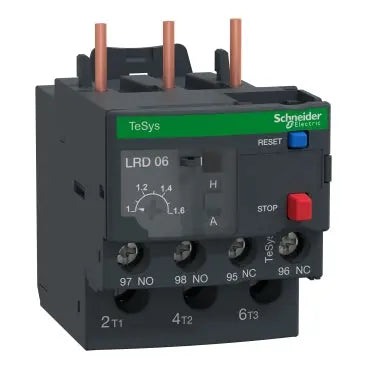

xThis thermal overload relay provides motor protection for 1–1.6 A applications. It features phase failure sensitivity and is compatible with a range of contactors, offering versatile use and reliable performance.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | ATEX INERIS / BV / CCC / CSA / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / DNV-GL / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB / T 14048.4 / GB / T 14048.5 / IEC / LROS (Lloyds Register of Shipping) / RINA / UKCA / UL / UL 60947-4-1 / UL 60947-5-1 |
| Temperature: Operating | -20 °C to 60 °C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 66mm |
| Weight (g) | 124g |
| Packaging size / unit | 1 / 24 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible without cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² flexible with cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm² solid without cable end / Power circuit: screw clamp terminals 1 cable(s) 1.5 - 10 mm² flexible without cable end / Power circuit: screw clamp terminals 1 cable(s) 1 - 4 mm² flexible with cable end / Power circuit: screw clamp terminals 1 cable(s) 1 - 6 mm² solid without cable end |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | DC / AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / with specific accessories / Rail / with specific accessories / Under contactor |
| Warranty | 18 Months |
