Description

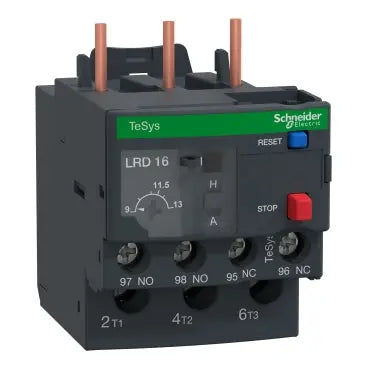

xThis TeSys LRD thermal overload relay offers adjustable motor protection with a thermal protection range of 9–13 A. It is designed for compatibility with LC1D contactors and includes phase failure sensitivity, suitable for AC and DC networks, with class 10A thermal overload protection.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / DNV-GL / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB/T 14048.4 / GB/T 14048.5 / IEC / INERIS / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 66mm |
| Weight (g) | 124g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Style | 1 NO + 1 NC |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | AC/DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate, with specific accessories rail, with specific accessories under contactor |
| Warranty | 18 Months |
