Description

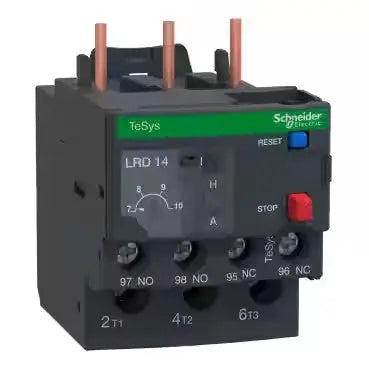

xThe TeSys LRD14 thermal overload relay provides motor protection with an adjustable thermal protection range of 7–10 A. This relay is designed for use with LC1D series contactors and features phase failure sensitivity, ensuring protection for industrial motors in AC and DC networks.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / DNV-GL / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB/T 14048.4 / GB/T 14048.5 / IEC / INERIS / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 66mm |
| Weight (g) | 124g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Style | 1 NO + 1 NC |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end |
| Max Frequency | 0 / 400 Hz |
| Type of Voltage | AC/DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate, with specific accessories rail, with specific accessories under contactor |
| Warranty | 18 Months |
