Description

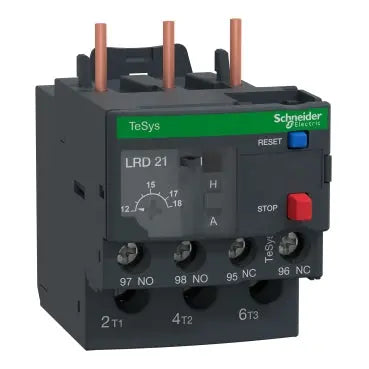

xThis TeSys LRD thermal overload relay provides motor protection with a thermal overload adjustment range of 12-18 A. It is compatible with LC1D contactors and offers protection in motor circuits.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | ATEX / BV / CCC / CSA / CSA C22.2 No 60947-4-1 / CSA C22.2 No 60947-5-1 / DNV-GL / EAC / EN 50495 / EN/IEC 60947-4-1 / EN/IEC 60947-5-1 / GB/T 14048.4 / GB/T 14048.5 / IEC / INERIS / LROS (Lloyds register of shipping) / RINA / UL / UKCA |
| Temperature: Operating | -20°C to 60°C |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 66mm |
| Weight (g) | 124g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid |
| Voltage Frequency Range | 0 / 400 Hz |
| Type of Voltage | AC/DC |
| Rated Operating Voltage | 600 / 690 V |
| Mounting Type | Plate, with specific accessories rail, with specific accessories under contactor |
| Warranty | 18 Months |
