Description

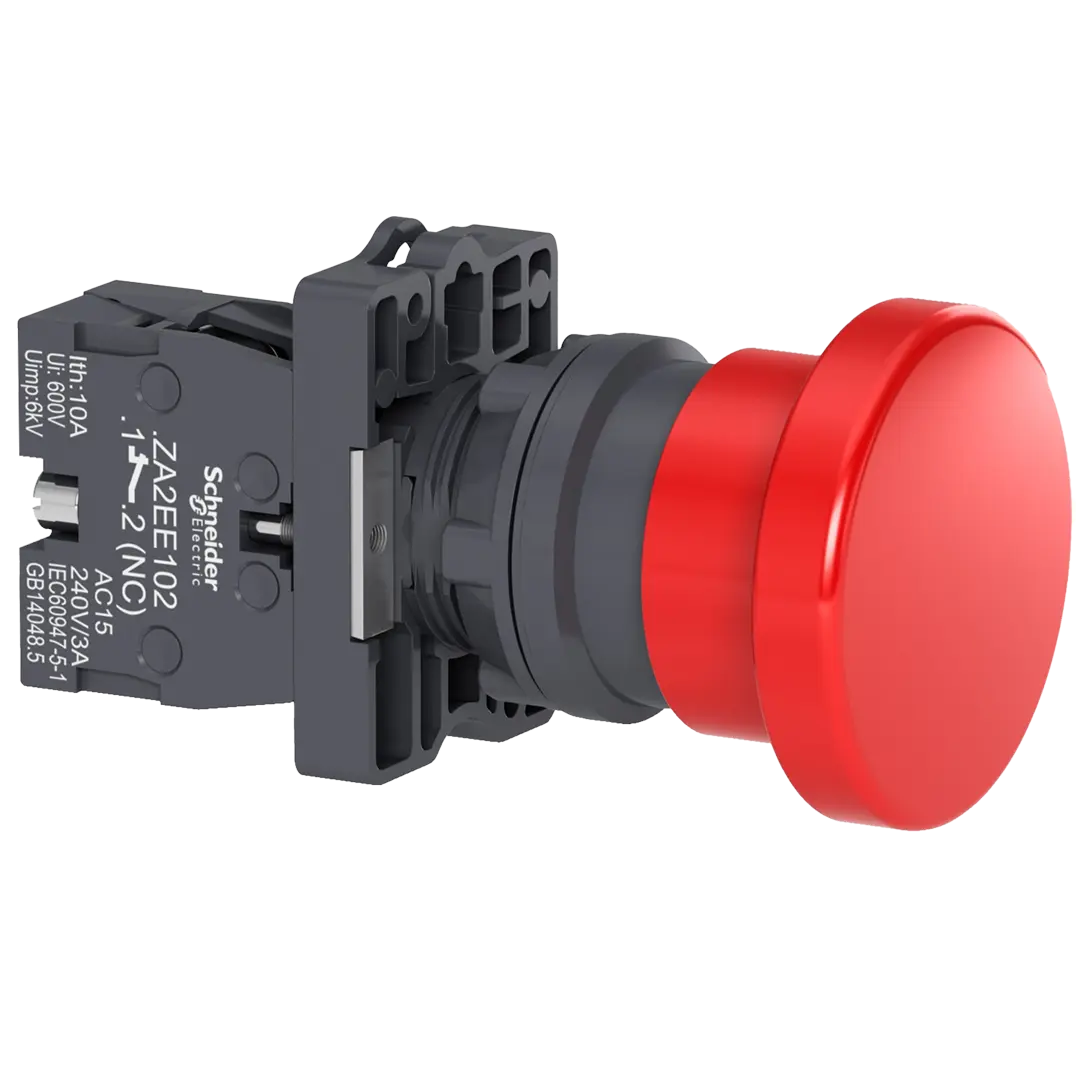

xComplete Illuminated Plastic Button and Switch product function, Illuminated complete plastic unit with contact function. It combines simplicity of installation, flexibility, and robustness. It meets the requirements of the majority of industrial applications.
Specifications
x| IP Rating / Detailed | IP65 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-1,GB 14048.5,GB 14048.1,IEC 60947-5-1 |
| Temperature: Operating | -25…55 °C |
| Part Depth (mm) | 74.2mm |
| Part Width (mm) | 42mm |
| Part Height (mm) | 30mm |
| Tightening Torque (N.m) | 0.8 Nm |
| Connection Style | 1 NC |
| Connection Type | Screw clamp terminal, <= 2 x 1.5 mm²,Screw clamp terminal, <= 1 x 2.5 mm²,Screw clamp terminal, >= 1 x 0.5 mm²,Faston terminals, connection size: 6.3 mm |
| Current Rating | 3 A at 240 V, AC-15, A600,0.27 A at 250 V, DC-13, Q600 |
| Operating Period(Mech) | 1500000 cycles |
| Operating Period(Elec) | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4,500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Colour | Red |
