Description

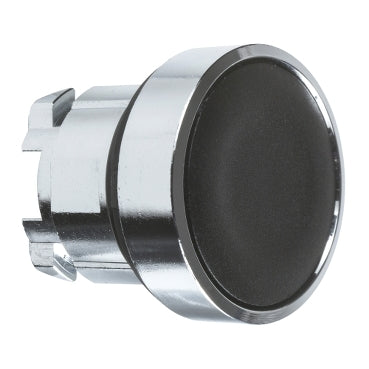

xThis metal push button head has a flush black actuator with a 22mm mounting diameter, intended for assembly into Harmony-style control station enclosures. It carries an IP66 rating and is suited to operation across a temperature range of -40 to 70°C, making it applicable in demanding industrial environments. Typical use is as an operator control point on control panels and machine interfaces, mounted alongside compatible bases and contact blocks.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Operating temperature: -40…70 °C
- Colour: Black
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-1,JIS C8201-5-1,IEC 60947-5-4,UL 508,IEC 60947-5-1,CSA C22.2 No 14,IEC 60947-5-5,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 28mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Operating Period(Mech) | 2000000 cycles |
| Colour | Black |
