Description

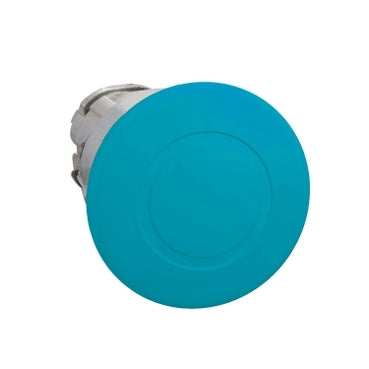

xThis is a replacement head for a non-illuminated pushbutton, blue, with a 40mm actuator suited to applications requiring larger or mushroom-style operator targets such as emergency stop or highly visible manual controls. The head carries an IP66 rating, giving protection against dust ingress and water jets, and is rated for operation across a temperature range of -40 to 70°C. It is intended for use on control panels and machine interfaces where the blue colour is used to denote a specific function within the operator's colour-coding scheme.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Operating temperature: -40…70 °C
- Colour: Blue
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | CSA C22.2 No 14,EN/IEC 60947-5-1,EN/IEC 60947-1,JIS C8201-5-1,UL 508,EN/IEC 60947-5-5,EN/IEC 60947-5-4,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Operating Period(Mech) | 300000 cycles |
| Colour | Blue |
