Description

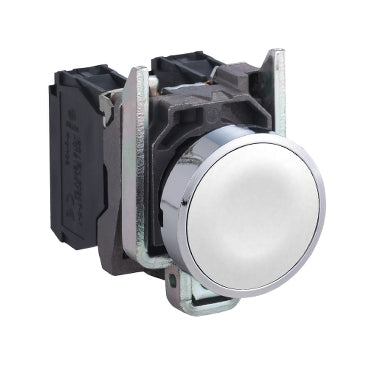

xThis industrial push-button features a robust metal construction and a single NO contact, offering reliable operation in automation and control systems.
Specifications
x| IP Rating | IP66 / IP67 / IP69 / IP69K |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds Register of Shipping) / UL 508 / UL Listed |
| Temperature: Operating | -40°C to 70 °C |
| Part Depth (mm) | 52mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 80g |
| Packaging size / unit | 1 / 5 / 150 pc(s) |
| Tightening Torque | 0.8 - 1.2 Nm |
| Material: Product | Silver alloy (Ag/Ni) |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Communication | 1 NO |
| Connection Type | Screw clamp terminals / <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 / Screw clamp terminals / 1 x 0.22 - 2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Current Rating / Rated Current | 0.1 - 6 A |
| Operating Period | 10000000 cycles (mechanical) / 1000000 cycles / AC-15 / 2 A at 230 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 3 A at 120 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 4 A at 24 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / DC-13 / 0.2 A at 110 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / DC-13 / 0.5 A at 24 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C (electrical) |
