Description

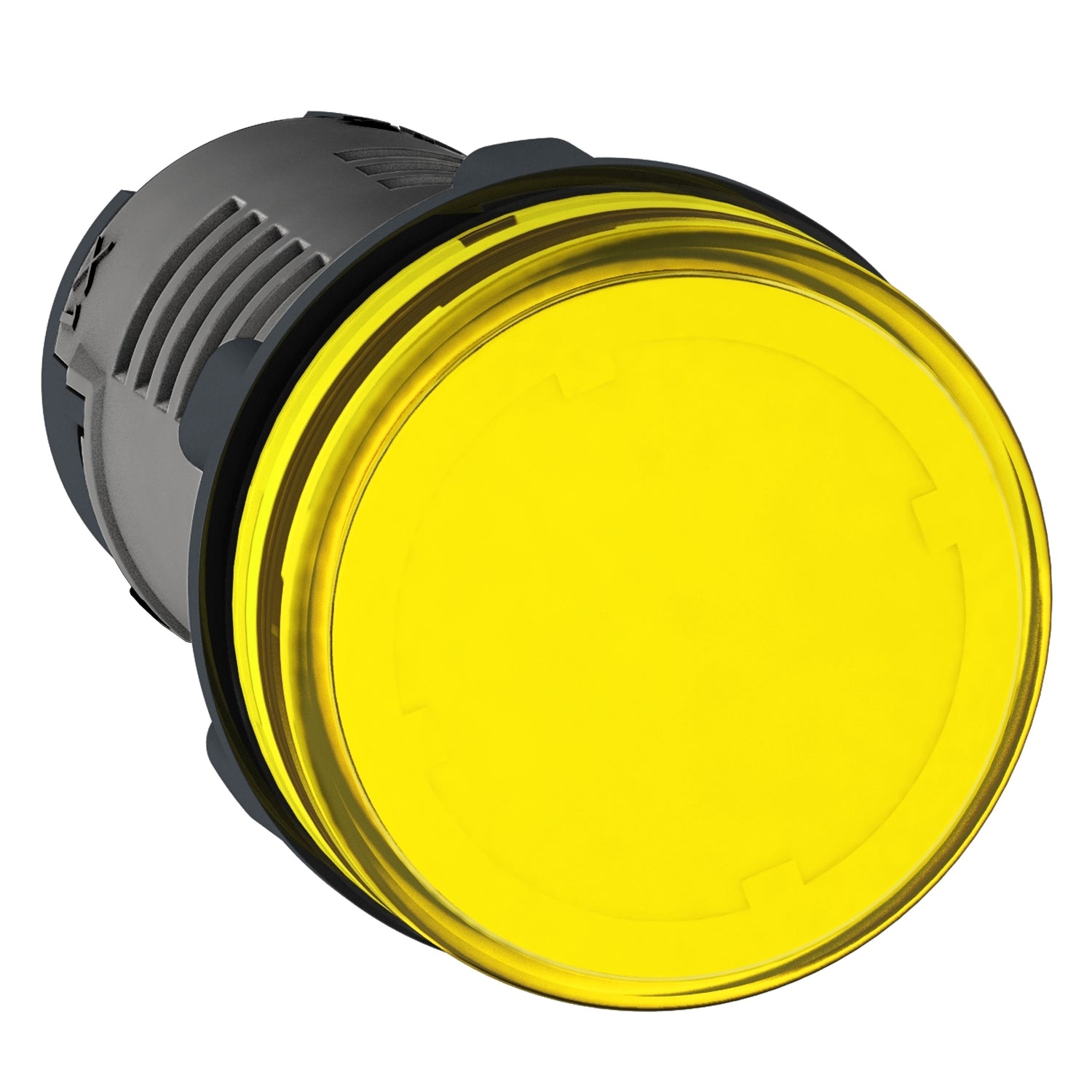

xThis Schneider Electric product is a pilot light. It connects via Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1,Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1. The housing is rated IP20 (rear face) conforming to IEC 60529 and the unit is specified for -25…70 °C.
Key specifications
- IP rating: IP20 (rear face) conforming to IEC 60529
- Operating temperature: -25…70 °C
- Colour: Yellow
Specifications
x| IP Rating / Detailed | IP20 (rear face) conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-1,GB 14048.5,IEC 60947-1,GB 14048.1 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 53mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1,Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Supply Voltage | 24 V AC/DC 50/60 Hz |
| Current Consumption | 20...27 mA |
| Colour | Yellow |
