Description

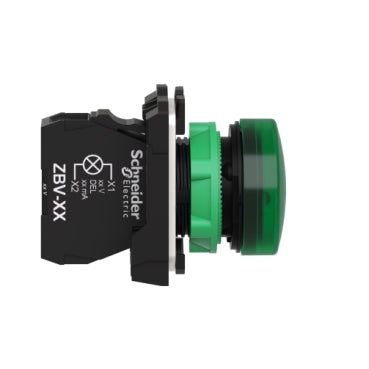

xThis pilot light is a plastic-bodied, green Ø22 indicator rated for 24 V AC/DC supply at 50/60 Hz, drawing 18 mA. It carries an IP66 rating and is designed for operation across a temperature range of -40 to 70°C, making it suitable for demanding panel environments. Connection is made via screw clamp terminals, and the unit is typically used on control panels and machine interfaces to provide visual status indication.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Operating temperature: -40…70 °C
- Colour: Green
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | UL 508,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-1,CSA C22.2 No 14,JIS C8201-5-1,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 54mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 24 V AC/DC at 50/60 Hz |
| Current Consumption | 18 mA |
| Colour | Green |
