Description

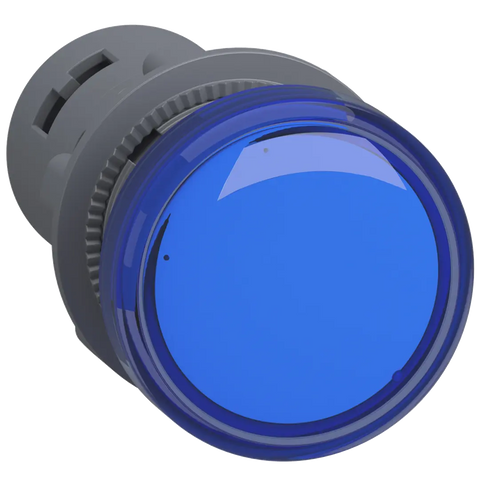

xComplete Illuminated Plastic Button and Switch product function, Illuminated complete plastic unit with contact function. It combines simplicity of installation, flexibility, and robustness. It meets the requirements of the majority of industrial applications.
Specifications
x| IP Rating / Detailed | IP65 conforming to IEC 60529 |
| Compliance/Certifications | GB 14048.1,GB 14048.5,IEC 60947-1,IEC 60947-5-1,IEC 60529,IEC 50102 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 53mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Screw Type | Cross compatible with Philips No 2 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 110 V AC/DC 50/60 Hz |
| Current Consumption | <= 20 mA |
| Colour | Blue |
