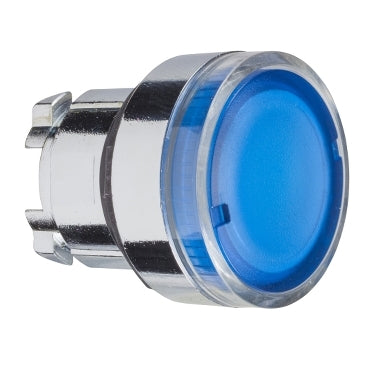

Schneider Illuminated pushbutton head, flush, blue Part number ZB4BW36

This is an illuminated pushbutton head with a flush blue actuator, designed for mounting on control panel enclosures. The flush profile sits level with the panel surface, giving a low-profile operator interface suitable for control and signalling applications. It is rated IP66, allowing use in environments where protection against dust...
Vendor: Schneider Electric
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x

This is an illuminated pushbutton head with a flush blue actuator, designed for mounting on control panel enclosures. The flush profile sits level with the panel surface, giving a low-profile operator interface suitable for control and signalling applications. It is rated IP66, allowing use in environments where protection against dust and water ingress is required, and is specified for operation across a temperature range of -40 to 55°C.

Key specifications

  • IP rating: IP66 conforming to IEC 60529
  • Operating temperature: -40…55 °C
  • Colour: Blue
Specifications
Specifications
x
IP Rating / DetailedIP66 conforming to IEC 60529
Compliance/CertificationsIEC 60947-1,JIS C8201-5-1,IEC 60947-5-1,CSA C22.2 No 14,UL 508,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1
Temperature: Operating-40…55 °C
Part Depth (mm)32mm
Part Width (mm)29mm
Part Height (mm)29mm
Operating Period(Mech)10000000 cycles
ColourBlue
Documents
Documents
x
Download Datasheet
