Description

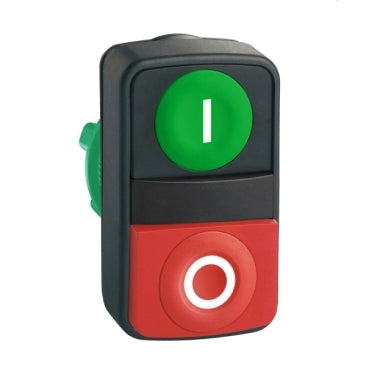

xThis double head pushbutton combines a green and a red actuator in a single 22mm mounting unit, allowing two separate control functions, such as start and stop, to be operated from one point on a panel or enclosure. It carries an IP66 rating, making it suitable for environments where dust and water ingress must be prevented, and it operates across a temperature range of -25 to 70°C. The compact housing dimensions (30mm width, 35mm depth, 50mm height) suit installation in control panels and machine interfaces where space is limited.
Key specifications
- IP rating: IP66
- Operating temperature: -25…70 °C
Specifications
x| IP Rating / Detailed | IP66 |
| Compliance/Certifications | IEC 60947-5-4,UL 508,CSA C22.2 No 14,IEC 60947-5-1,JIS C8201-5-1,IEC 60947-1,JIS C8201-1 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 35mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 50mm |
| Operating Period(Mech) | 1000000 cycles |
