Description

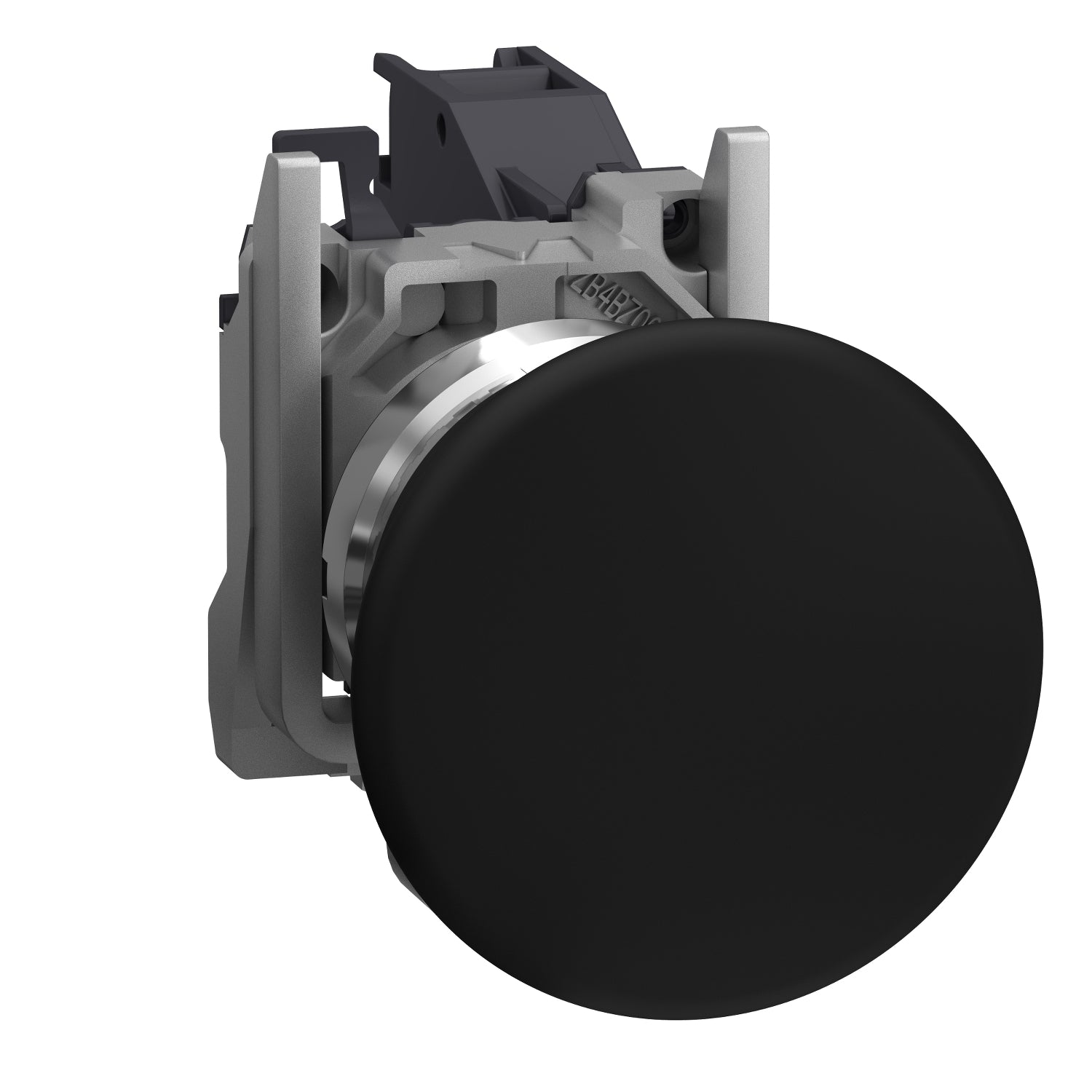

xThis Schneider Electric product is a complete pushbutton. It connects via Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1. The housing is rated IP65 conforming to IEC 60529 and the unit is specified for -20…75 °C.
Key specifications
- IP rating: IP65 conforming to IEC 60529
- Operating temperature: -20…75 °C
Specifications
x| IP Rating / Detailed | IP65 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60079-0:2009,EN/IEC 60079-1:2009,IEC 60079-7:2009,IEC 60079-31:2009,UL 60079-0,UL 60079-1,UL 60079-31,ANSI/ISA 12.12.01,CSA C22.2 No 213 |
| Temperature: Operating | -20…75 °C |
| Part Depth (mm) | 96.5mm |
| Part Width (mm) | 46.2mm |
| Part Height (mm) | 30mm |
| Connection Style | 1 NO |
| Connection Type | Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Current Rating | 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1,3 A at 240 V, AC, A600 conforming to IEC 60947-5-1,6 A at 120 V, AC, A600 conforming to IEC 60947-5-1,0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1,0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1,2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1 |
| Operating Period(Mech) | 5000000 cycles |
