Description

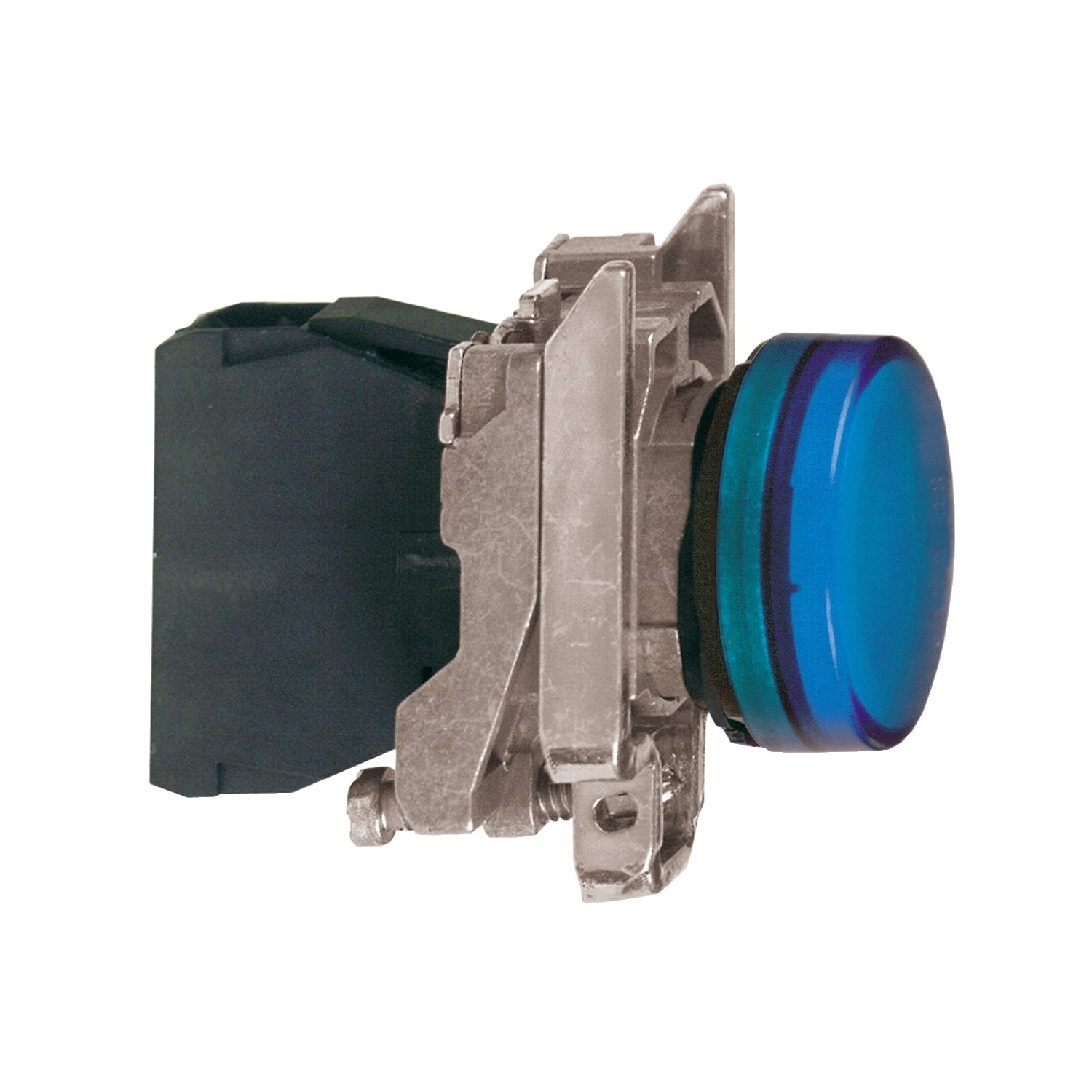

xThis Schneider Electric product is a complete pilot light. It connects via Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1. The housing is rated IP65 conforming to IEC 60529 and the unit is specified for -20…60 °C.
Key specifications
- IP rating: IP65 conforming to IEC 60529
- Operating temperature: -20…60 °C
- Colour: Blue
Specifications
x| IP Rating / Detailed | IP65 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60079-0:2009,EN 60079-31:2009,IEC 61000-6-2,IEC 60079-0:2007,IEC 60079-31:2008 |
| Temperature: Operating | -20…60 °C |
| Part Depth (mm) | 43mm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 230...240 V AC 50/60 Hz |
| Current Consumption | 14 mA |
| Colour | Blue |
