Description

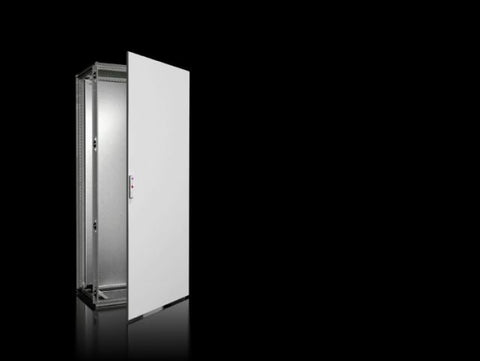

xThis steel baying enclosure forms part of the VX system, sized 800 x 1800 x 500mm, allowing multiple enclosures to be joined side by side to create extended panel arrangements. It provides a housing for control and automation equipment where larger or segmented panel layouts are required. Typical use is in industrial installations where automation components must be mounted within a structured, enclosed cabinet arrangement.
Specifications
x| Model No. | VX 8885.000 |
| Colour | RAL 7035 |
| Dimensions | Width: 800 mm; Height: 1,800 mm; Depth: 500 mm |
| Dimensions mounting plate (W x H) | 699 mm x 1,696 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1; NEMA 12 |
| Type rating to UL 50E | Type 1; Type 12 |
| IK Code | IK10 |
| Weight | 113 kg |
| Basic material | Sheet steel |
