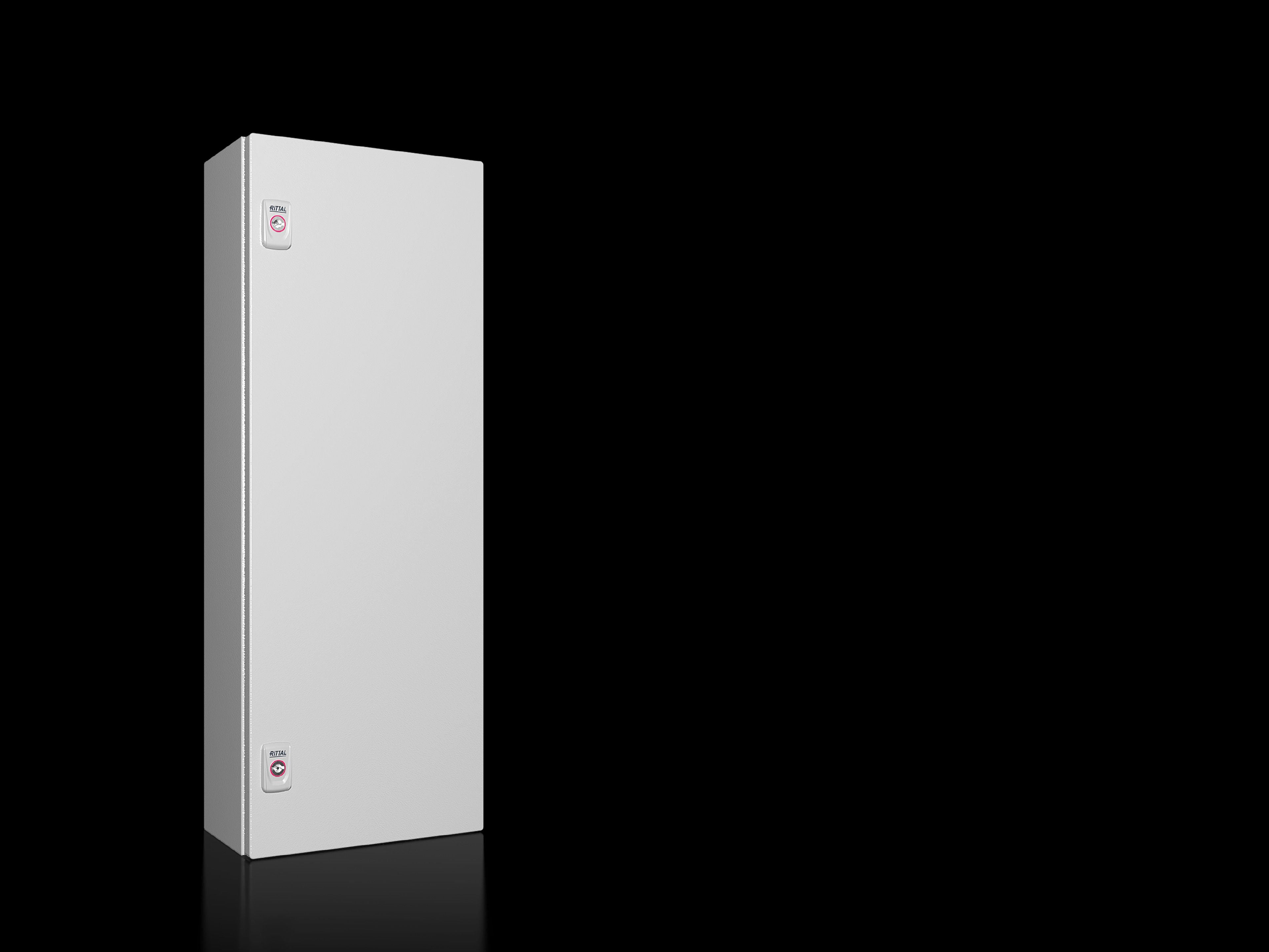

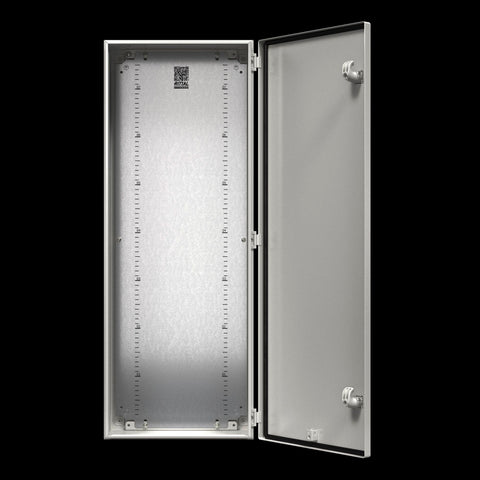

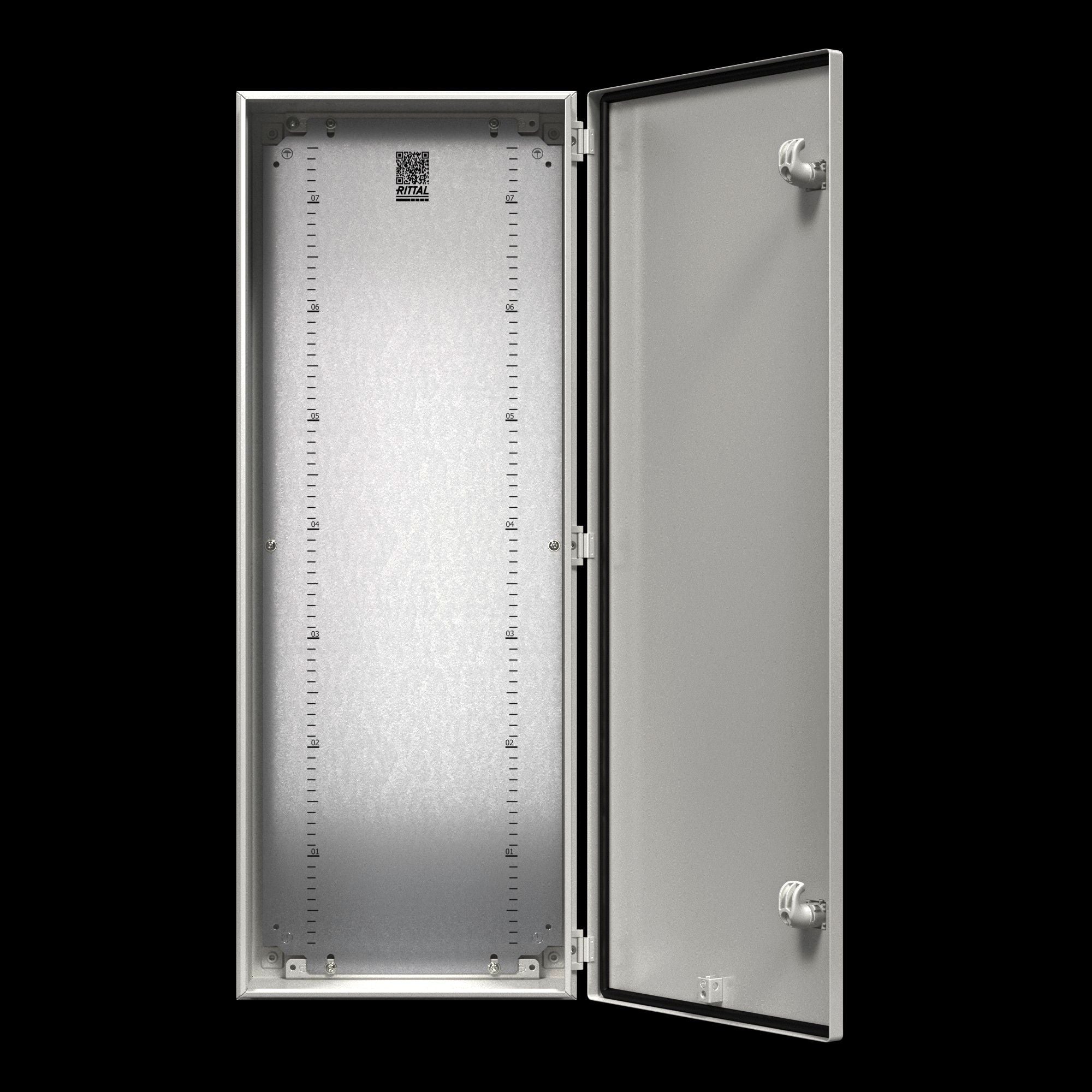

Rittal KX E-Box with door, sheet steel, 300 x 800 x 155mm
Rittal KX E-Box with door, sheet steel, 300 x 800 x 155mm

Rittal KX E-Box with door, sheet steel, 300 x 800 x 155mm Part number 1579.000

The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Specifications
Specifications
x
Model No.KX 1579.000
Material - EnclosureSheet steel
Material - DoorSheet steel, all-round foamed-in PU seal
Surface FinishDipcoat primed, powder-coated on the outside, textured paint
Mounting Plate Surface FinishZinc-plated
ColourRAL 7035
Protection Category NEMANEMA 1, 3R, 4, 12
Protection Category IEC 60 529IP 66
Type Rating to UL 50EType 1, 3R, 4, 12
IK CodeIK08
Dimensions - Width300 mm
Dimensions - Height800 mm
Dimensions - Depth155 mm
Dimensions - Mounting Plate (W x H)275 mm x 785 mm
Material Thickness - Enclosure1.25 mm
Material Thickness - Door1.25 mm
Material Thickness - Mounting Plate2 mm
Weight/Pack13 kg
Customs Tariff Number94032080
ApprovalsBureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
