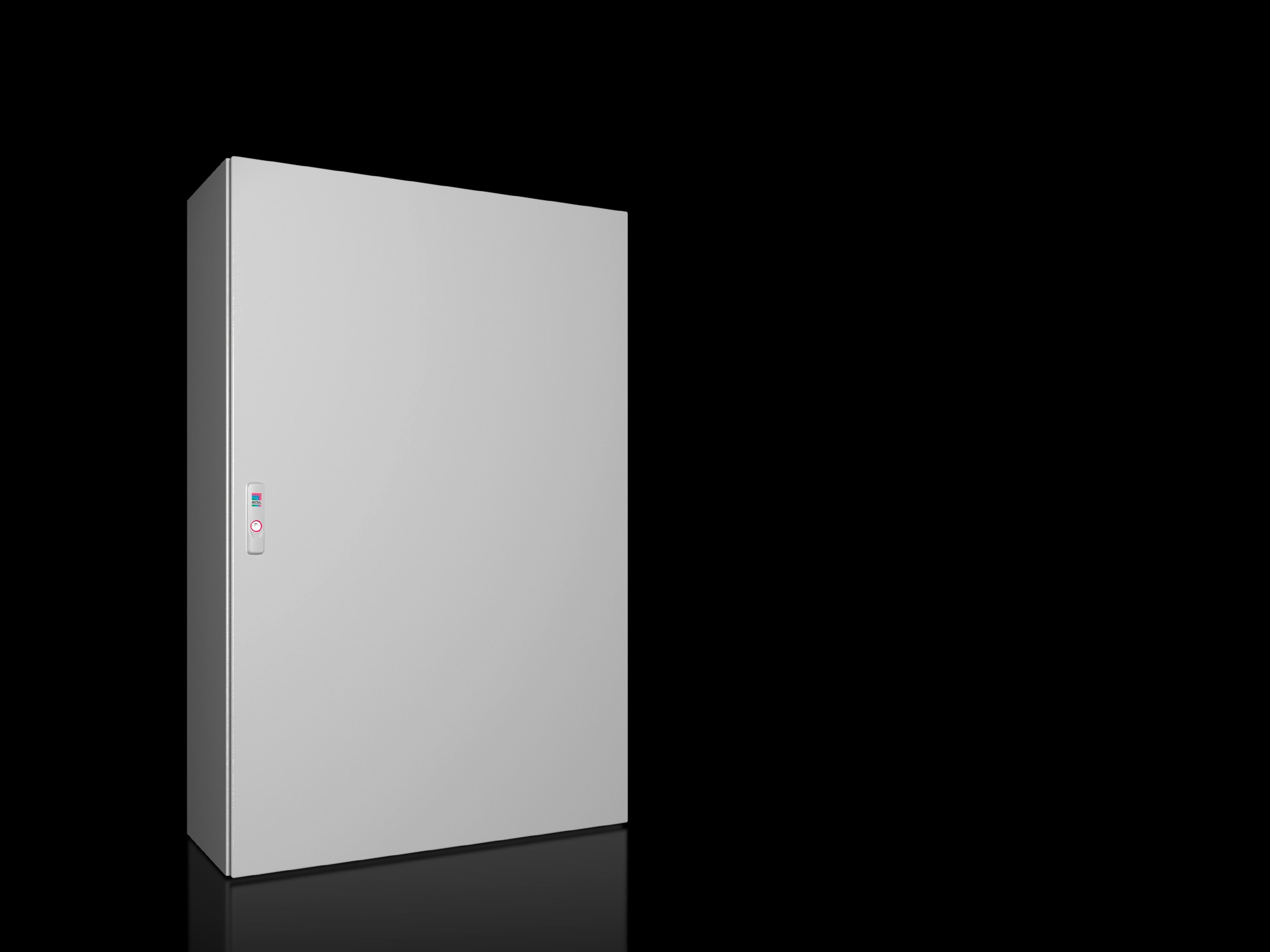

Rittal AX Compact enclosure, sheet steel, 800x1200x300mm Part number 1280.000

The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be...
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Specifications
Specifications
x
Model No.AX 1280.000
Material - EnclosureSheet steel
Material - DoorSheet steel, all-round foamed-in PU seal
Surface Finish - Enclosure and DoorDipcoat primed, powder-coated on the outside, textured paint
Mounting Plate FinishZinc-plated
ColourRAL 7035
Protection category NEMANEMA 1, 3R, 4, 12
Protection category to IEC 60 529IP 66
IK CodeIK10
Dimensions (W x H x D)800 mm x 1200 mm x 300 mm
Material Thickness - Door2 mm
Material Thickness - Enclosure1.5 mm
Material Thickness of Mounting Plate2.5 mm
Dimensions Mounting Plate (W x H)745 mm x 1175 mm
Number of Doors1
Lock Version3-point lock system
Number of Locks1
Lock Insert3 mm double-bit
Gland Plate Size5
Gland Plate Quantity2
Basic MaterialSheet steel
Weight63.5 kg
Customs Tariff Number94032080
EAN4028177813236
E-Number SwedenE3465167
ETIM 8EC000261
ETIM 7.0EC000261
ECLASS 8.027180101
Documents
Documents
x
Download Datasheet
