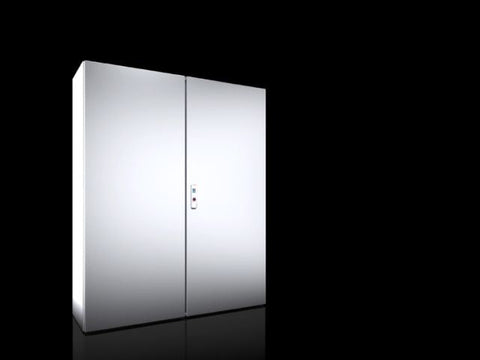

Rittal AX Compact enclosure, s/steel, 1000x1200x300mm

Product Overview

The AX 1019.000 is a large robust stainless steel basic enclosure designed for demanding industrial applications requiring superior environmental protection and system flexibility with maximum capacity. This two-door wall-mounted enclosure features high-grade stainless steel 1.4301 (AISI 304) construction with integrated mounting plate and an innovative integral locator system that enables fast, reliable system configuration without drilling, providing substantial interior space with tall vertical format, extended depth, and dual access points for extensive installations.

Key Features:

• Stainless Steel Construction: High-grade 1.4301 (AISI 304) material for superior corrosion resistance
• Environmental Protection: IP 55 and multiple NEMA ratings (1, 12) plus UL Type ratings optimized for two-door configuration
• Impact Resistance: IK10 mechanical protection rating for maximum durability
• Integral Locator System: Patented system enabling extensive configuration without drilling
• All-Round Sealing: Foamed-in PU seal on doors for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle per VDI
• 3-Point Lock System: Advanced locking mechanism for enhanced security
• Two-Door Design: Dual access points for improved serviceability and installation flexibility
• Heavy-Duty Construction: Thicker materials with 2mm door and 1.5mm enclosure thickness
• Maximum Capacity Format: 1000x1200mm for extensive vertical installations
• Extended Depth: 300mm depth for larger component installations

Technical Specifications:

• Article Number: AX 1019.000
• Dimensions (W x H x D): 1,000 mm x 1,200 mm x 300 mm
• Mounting Plate Dimensions: 945 mm x 1,175 mm
• Material: Stainless steel 1.4301 (AISI 304)
• Material Thickness - Enclosure: 1.5 mm
• Material Thickness - Door: 2 mm
• Mounting Plate Thickness: 2.5 mm
• Surface Finish: Brushed, grain 400
• Lock Type: 3-point lock system with 3mm double-bit insert
• Number of Doors: 2

Compliance & Certifications:

• Protection Rating: IP 55 according to EN 60529
• NEMA Ratings: NEMA 1, 12
• UL Type Ratings: Type 1, 12 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: DIN 43668 (lock insert), VDI (opening angle)

Applications:

Essential for large-scale industrial applications requiring maximum environmental protection with stainless steel durability, extensive system flexibility, and dual access capability. Ideal for food and beverage processing, pharmaceutical manufacturing, chemical processing plants, marine environments, outdoor installations, complex control systems, electrical distribution panels, and any application where corrosion resistance, dual-door accessibility, modular system expansion capabilities, enhanced security with 3-point locking, and maximum interior capacity are critical requirements.
