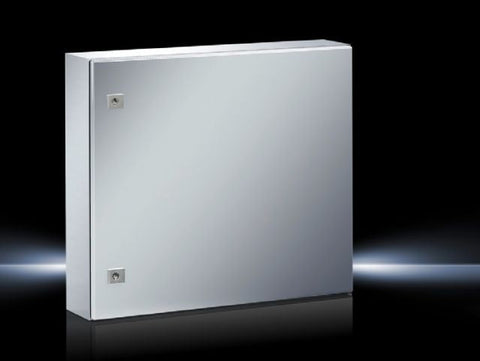

Rittal AE Compact enclosure, stainless steel, 600x600x210mm

Product Overview

The AE 1010.600 is a large compact stainless steel enclosure designed for demanding industrial applications requiring superior environmental protection and corrosion resistance. This single-door wall-mounted enclosure features high-grade stainless steel 1.4301 (AISI 304) construction with integrated mounting plate, providing reliable protection for electrical and electronic components in harsh industrial environments with maximum interior space and enhanced security through dual locking.

Key Features:

• Stainless Steel Construction: High-grade 1.4301 (AISI 304) material for superior corrosion resistance
• Superior Protection: IP 66 and NEMA 4X environmental protection rating
• Impact Resistance: IK08 mechanical protection rating for demanding applications
• Brushed Finish: Professional grain 400 surface finish with peak-to-valley height < 0.8 µm
• All-Round Sealing: Foamed-in PU seal on door for reliable environmental protection
• Large Square Format: Maximum interior space for complex installations
• Dual Locking System: Two cam locks with 3mm double-bit insert for enhanced security
• Integrated Mounting Plate: Zinc-plated sheet steel with proper earthing provisions

Technical Specifications:

• Article Number: AE 1010.600
• Dimensions (W x H x D): 600 mm x 600 mm x 210 mm
• Mounting Plate Dimensions: 549 mm x 570 mm
• Material: Stainless steel 1.4301 (AISI 304)
• Surface Finish: Brushed, grain 400
• Lock Type: Two cam locks with 3mm double-bit insert
• Lock Material: Die-cast zinc, nickel-plated
• Number of Doors: 1
• Number of Locks: 2
• Net Weight: 22.325 kg
• EAN: 4028177000438

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Rating: NEMA 4X
• Impact Protection: IK08
• ETIM 9: EC000261
• ECLASS 8.0: 27180101

Applications:

Essential for large industrial applications requiring stainless steel durability with robust environmental protection and enhanced security. Ideal for food and beverage processing, pharmaceutical manufacturing, chemical processing plants, marine environments, outdoor installations, complex control systems, and any application where corrosion resistance, IP 66 protection, maximum interior space, and dual-lock security are critical requirements.
