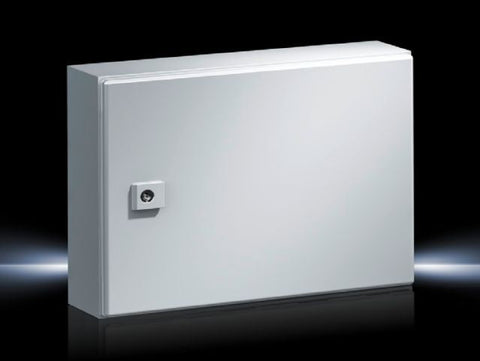

Rittal AE Compact enclosure, sheet steel, 380x300x155mm

Product Overview Long Description

The AX 1030.500 is a compact, robust wall-mounted enclosure designed for industrial applications that demand reliable environmental protection and straightforward system integration. This single-door enclosure is built from high-quality sheet steel with an all-round foamed-in PU seal to ensure lasting protection. It comes equipped with a zinc-plated mounting plate and a secure cam lock system, making it ideal for versatile electrical and automation installations.

Key Features:

·        Sheet Steel Construction: Solid sheet steel body and door with textured powder-coated finish (RAL 7035) for strength and durability

·        Superior Protection: Rated IP 66 (IEC 60529) and NEMA 4 for excellent environmental resistance

·        Impact Resistance: IK08 rating for robust mechanical protection

·        All-Round Sealing: Foamed-in polyurethane door seal ensures dependable dust and water ingress protection

·        Secure Locking: Supplied with one 3 mm double-bit cam lock for reliable closure

·        Optimized Mounting: Zinc-plated mounting plate included for quick component installation

·        Practical Access: Gland plate provided in the base for convenient cable entry

Technical Specifications:

·        Article Number: AX 1030.500

·        Dimensions (W x H x D): 380 mm × 300 mm × 155 mm

·        Material: Sheet steel body and door, zinc-plated mounting plate

·        Material Thickness – Door: 1.5 mm

·        Material Thickness – Enclosure: 1.38 mm

·        Mounting Plate Thickness: 2 mm

·        Surface Finish: Dipcoat primed, powder-coated with textured paint, RAL 7035

·        Lock Type: Cam lock with 3 mm double-bit insert

·        Includes: Mounting plate, hinged door, gland plate in base

Compliance & Certifications:

·        Protection Rating: IP 66 (IEC 60529)

·        NEMA Rating: 4

·        Impact Protection: IK08

·        Approvals: DNV-GL, Lloyd’s Register of Shipping, UL + C-UL Listed

Applications:

Suitable for a wide range of indoor and outdoor industrial applications where reliable environmental sealing and mechanical protection are required. Commonly used for electrical distribution, control systems, machine building, and automation projects in demanding environments.
