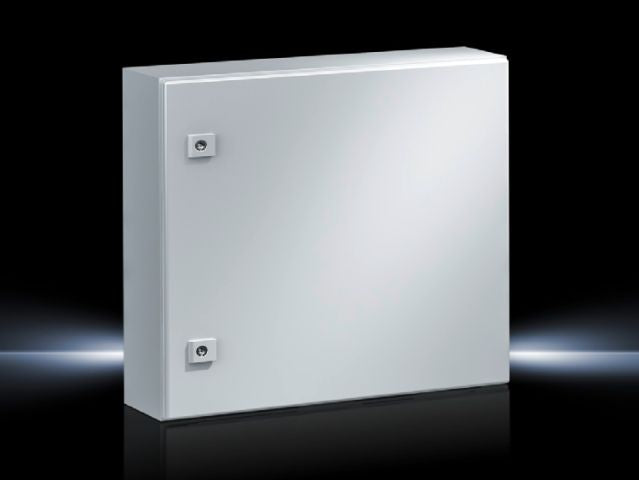

Rittal AE Compact enclosure, sheet steel, 500x500x210mm

Product Overview

The AE 1050.500 is a robust sheet steel enclosure designed for industrial applications requiring reliable environmental protection and practical system integration. This single-door wall-mounted enclosure features durable sheet steel construction with a zinc-plated mounting plate and foamed-in PU door seal, ensuring dependable protection against dust, water, and mechanical stress. Its secure cam lock system and included gland plate make it a versatile solution for housing electrical and automation components in demanding environments.

Key Features:

• Solid Sheet Steel Construction: Enclosure and door constructed from carbon (or sheet) steel to provide strength and durability.
• Foamed-In PU Door Seal: All-round seal for the door to protect against dust and water ingress.
• Robust Surface Finish: Dipcoat primed and powder-coated textured paint in light gray (RAL 7035); mounting plate is zinc-plated.
• High Protection Ratings: Up to IP 66 for environmental sealing, IK08 for impact resistance.
• Secure Locking System: Two cam locks with 3 mm double-bit inserts.
• Gland Plate & Mounting Plate Included: Includes base gland plate(s) for cable entry and a zinc-plated mounting plate.

Technical Specifications:

• Article Number: AE 1050.500
• Dimensions (W × H × D): 500 mm × 500 mm × 210 mm
• Material: Enclosure and door of sheet steel; mounting plate zinc-plated
• Material Thickness – Door: 1.75 mm
• Material Thickness – Enclosure Body: 1.38 mm
• Material Thickness – Mounting Plate: 2.5 mm
• Mounting Plate Size (W × H): 449 mm × 470 mm
• Number of Doors: 1
• Number of Locks: 2, cam version, 3 mm double-bit insert
• Gland Plate: Size 4, quantity 1 in base
• Net Weight: ~ 15.997 kg

Compliance & Certifications:

• Protection Rating: IP 66 per IEC 60529
• NEMA Rating: 4
• IK Rating: IK08
• Approvals: DNV-GL; Lloyd’s Register of Shipping; UL + C-UL Listed

Applications:

Perfect for indoor or outdoor installations in industrial, automation, and manufacturing settings. Commonly used to house electrical panels, instrumentation, control equipment, junctions, and wiring in harsh or exposed environments. Also suited for applications requiring secure locking, high IP/impact protection, and standard mounting configurations.
