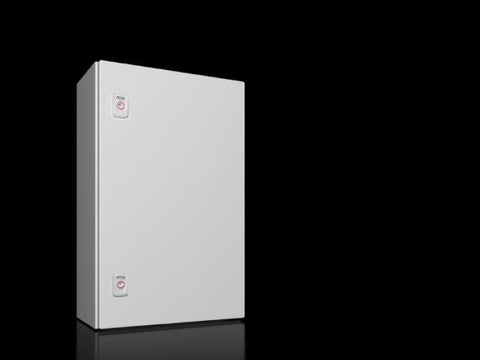

Rittal AX Compact enclosure, sheet steel, 380x600x210mm

Product Overview

The AX 1038.000 is a taller sheet steel basic enclosure designed for demanding industrial applications requiring maximum interior installation flexibility and increased mounting capacity. This single-door compact enclosure features integral enclosure locators on a 25mm system pitch pattern, enabling extensive configuration and retrofitting without drilling while maintaining protection category ratings. With enhanced height and dual locking system, it provides expanded space for larger installations.

Key Features:

• Integral Locator System: Patented 25mm system pitch pattern enabling extensive configuration without drilling
• Superior Protection: IP 66 and multiple NEMA ratings (1, 3R, 4, 12) plus UL Type ratings
• Impact Resistance: IK10 mechanical protection rating for maximum durability
• Triple Surface Treatment: Nanoceramic coating, electrophoretic dipcoat priming, and powder coating for optimum corrosion protection
• All-Round Sealing: Foamed-in PU seal on door for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle (retrofittable to 180°)
• Dual Locking System: Two cam locks with 3mm double-bit insert for enhanced security
• Perforated Door Strip: Vertical strips on both sides with PE conductor connection
• QR Code Identification: Printed on body, cover and rating plate for easy product identification

Technical Specifications:

• Article Number: AX 1038.000
• Dimensions (W x H x D): 380 mm x 600 mm x 210 mm
• Mounting Plate Dimensions: 330 mm x 575 mm
• Material: Sheet steel with RAL 7035 finish
• Material Thickness - Enclosure: 1.25 mm
• Material Thickness - Door: 1.5 mm
• Mounting Plate Thickness: 2.5 mm
• Surface Finish: Textured powder coating RAL 7035
• Lock Type: Two cam locks with 3mm double-bit insert
• Gland Plate: Size 2, quantity 1
• Net Weight: 14.2 kg
• EAN: 4028177813410

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Ratings: NEMA 1, 3R, 4, 12
• UL Type Ratings: Type 1, 3R, 4, 12 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: DIN 43668 (lock insert), VDI (opening angle)
• ETIM 9: EC000261
• ECLASS 8.0: 27180101
• PCF per pack: 55.4 kg CO2 eq (Category B)

Applications:

Essential for taller industrial applications requiring maximum interior installation flexibility with robust environmental protection. Ideal for larger control systems, automation equipment, electrical distribution, instrumentation protection, and any application where modular system expansion, easy retrofitting, enhanced security, and IP 66 protection are critical requirements in a vertical configuration.
