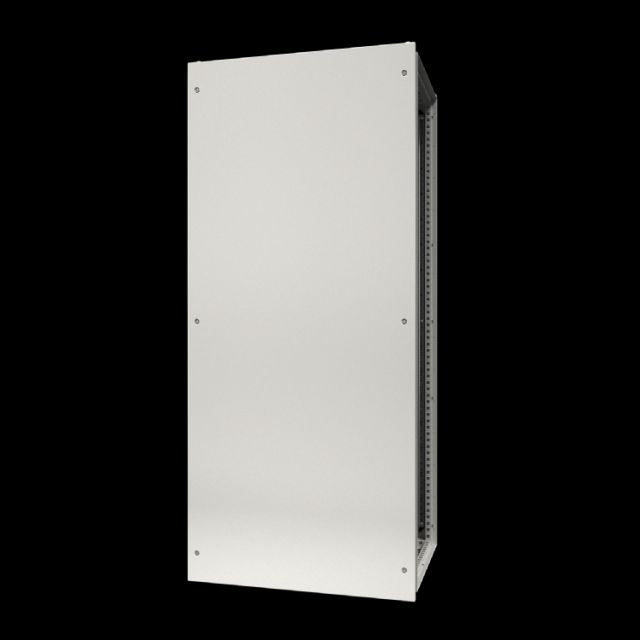

Rittal VX Bayed enclosure system, (WHD) 600 x 1800 x 500mm

Product Overview

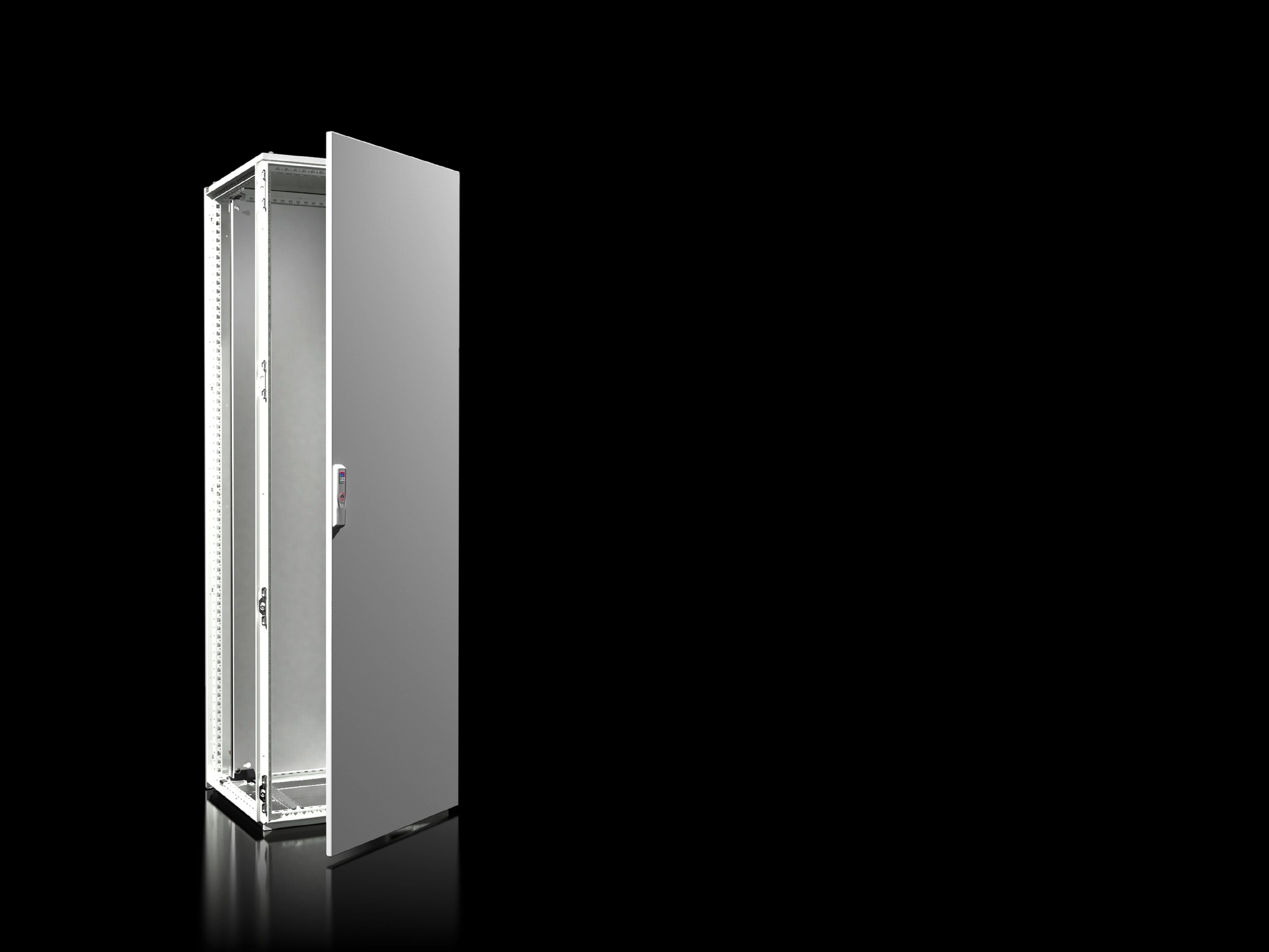

A VX25 bayed basic enclosure engineered for modular, expandable control installations. Supplied complete with enclosure frame, single front door, rear panel, roof plate, divided gland plates and depth-adjustable mounting plate to enable fast, space-efficient interior installation. The right-hand hinged door can be swapped to the left, while the VX25 frame offers two mounting levels and a 25 mm pitch system for flexible configuration.

Key Features:

·        VX25 Modular Frame: Symmetrical frame with 25 mm pitch pattern and two mounting levels accessible from inside and outside for rapid, tidy outfitting.

·        Depth-Adjustable Mounting Plate: C-folded plate with integral sliders and reusable rails, adjustable in 25 mm steps for optimal component positioning.

·        Door System: Foamed-in seal, removable tubular door frame with 25 mm hole pattern and integrated cable clamping; 4-point latch with 3 mm double-bit insert; hinge reversible right/left.

·        Baying & Cable Entry: Bayable on all sides; three-piece, removable gland plate set for flexible cable routing.

·        Built-In Practicalities: Welded base frame with reinforcement for internal floor fastening; automatic potential equalisation prepared; QR codes on key parts for identification and documentation access.

·        Supply Includes: Enclosure frame, single front door, rear panel, roof plate, divided gland plates, mounting plate, 2 punched rails 18 × 39 mm, 3 mm double-bit lock.

Technical Specifications:

·        Article Number: VX 8685.000

·        Dimensions (W × H × D): 600 mm × 1 800 mm × 500 mm

·        Mounting Plate (W × H): 499 mm × 1 696 mm

·        Number of Doors: 1

·        Material (thickness):

o   Enclosure frame, roof, rear panel, gland plates: Sheet steel, ~1.5 mm

o   Door: Sheet steel, 2.0 mm

o   Mounting plate: Sheet steel, 3.0 mm

·        Surface Finish / Colour: Dipcoat-primed; external textured powder coat RAL 7035; mounting plate & gland plates zinc-plated

·        Lock Type: 3 mm double-bit

·        Net Weight: ~87.47 kg

Compliance & Certifications:

·        Protection Rating: IP 55 (IEC 60529)

·        NEMA Ratings: 1, 12

·        UL Type Ratings: Type 1, 12 (UL 50E)

·        Impact Protection: IK10

·        Approvals: Bureau Veritas; DNV-GL; Lloyd’s Register of Shipping; UL + C-UL (listed)

Applications:

Ideal for industrial control systems, factory automation, and power distribution where robust protection, baying expandability, and fast interior equipment installation are required.
