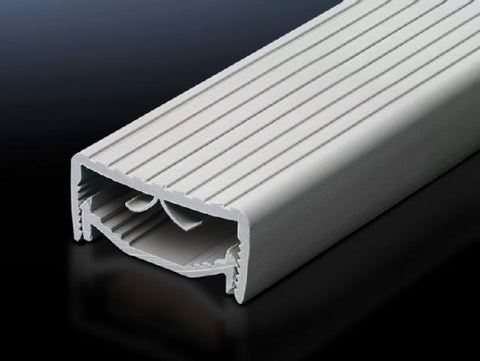

Rittal SV Busbar cover section for (WH) 40 - 60x10mm, (L) 1m Part number 3085.000

This busbar cover section provides contact hazard protection by fully encapsulating busbars. Made from thermally modified hard PVC, it is designed for busbars sized 40 x 10 to 60 x 10 mm and can be cut to required lengths, suitable for safe electrical installations.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This busbar cover section provides contact hazard protection by fully encapsulating busbars. Made from thermally modified hard PVC, it is designed for busbars sized 40 x 10 to 60 x 10 mm and can be cut to required lengths, suitable for safe electrical installations.
Specifications
Specifications
x
Model No.SV 3085.000
MaterialThermally modified hard PVC
Fire protectionUL 94-V0
ColourRAL 7035
Length1,000 mm
To fit busbars40 - 60 x 10 mm
Weight/pack6.12 kg
Customs tariff number85472000
EAN4028177036239
ETIM 7.0EC000775
ECLASS 8.027142414
Continuous operating temperaturemax. 100 °C
Documents
Documents
x
Download Datasheet
