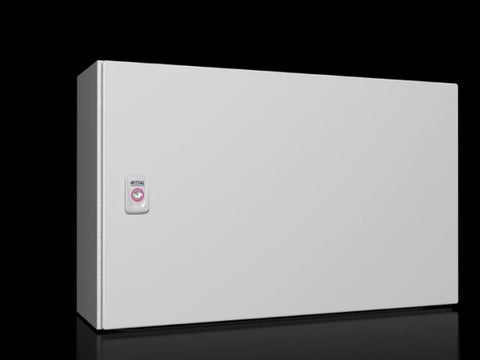

Rittal AX Compact enclosure, sheet steel, 600x380x210mm Part number 1039.000

Product Overview

The AX 1039.000 is a wide-format sheet steel basic enclosure designed for demanding industrial applications requiring maximum interior installation flexibility and increased horizontal mounting capacity. This single-door compact enclosure features integral enclosure locators on a 25mm system pitch pattern, enabling extensive configuration and retrofitting without drilling while maintaining protection category ratings. With enhanced width and larger gland plate, it provides expanded space for complex installations.

Key Features:

• Integral Locator System: Patented 25mm system pitch pattern enabling extensive configuration without drilling
• Superior Protection: IP 66 and multiple NEMA ratings (1, 3R, 4, 12) plus UL Type ratings
• Impact Resistance: IK10 mechanical protection rating for maximum durability
• Triple Surface Treatment: Nanoceramic coating, electrophoretic dipcoat priming, and powder coating for optimum corrosion protection
• All-Round Sealing: Foamed-in PU seal on door for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle (retrofittable to 180°)
• Wide Format Design: Extended width for larger system installations
• Perforated Door Strip: Vertical strips on both sides with PE conductor connection
• QR Code Identification: Printed on body, cover and rating plate for easy product identification

Technical Specifications:

• Article Number: AX 1039.000
• Dimensions (W x H x D): 600 mm x 380 mm x 210 mm
• Mounting Plate Dimensions: 550 mm x 355 mm
• Material: Sheet steel with RAL 7035 finish
• Material Thickness - Enclosure: 1.25 mm
• Material Thickness - Door: 1.5 mm
• Mounting Plate Thickness: 2.5 mm
• Surface Finish: Textured powder coating RAL 7035
• Lock Type: Cam lock with 3mm double-bit insert
• Gland Plate: Size 4, quantity 1
• Net Weight: 14.274 kg
• EAN: 4028177813380

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Ratings: NEMA 1, 3R, 4, 12
• UL Type Ratings: Type 1, 3R, 4, 12 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: DIN 43668 (lock insert), VDI (opening angle)
• ETIM 9: EC000261
• ECLASS 8.0: 27180101
• PCF per pack: 57.1 kg CO2 eq (Category B)

Applications:

Essential for wide industrial applications requiring maximum interior installation flexibility with robust environmental protection. Ideal for larger control systems, automation equipment, electrical distribution, instrumentation protection, and any application where modular system expansion, easy retrofitting, horizontal space optimization, and IP 66 protection are critical requirements in a landscape configuration.
