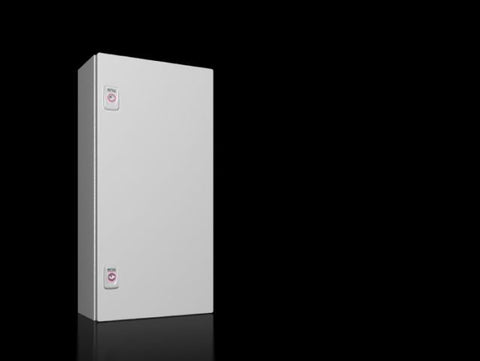

Rittal KX E-Box with door, sheet steel, 300 x 600 x 155mm Rittal
Rittal KX E-Box with door, sheet steel, 300 x 600 x 155mm Rittal

Rittal KX E-Box with door, sheet steel, 300 x 600 x 155mm Part number 1578.000

The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Specifications
Specifications
x
Model No.KX 1578.000
Material - EnclosureSheet steel
Material - DoorSheet steel, all-round foamed-in PU seal
Surface FinishDipcoat primed, powder-coated on the outside, textured paint
Mounting Plate Surface FinishZinc-plated
ColourRAL 7035
Protection category NEMANEMA 1, 3R, 4, 12
Protection category to IEC 60 529IP 66
Type rating to UL 50EType 1, Type 3R, Type 4, Type 12
IK CodeIK08
Dimensions - Width300 mm
Dimensions - Height600 mm
Dimensions - Depth155 mm
Dimensions - Mounting Plate (W x H)275 mm x 585 mm
Material Thickness - Enclosure1.25 mm
Material Thickness - Door1.25 mm
Material Thickness - Mounting Plate2 mm
Number of Locks2
Weight9.76 kg
Customs Tariff Number94032080
EAN4028177816640
E-Number SwedenE3465240
ETIM 7.0EC000261
ECLASS 8.027180101
ApprovalsBureau Veritas DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
Documents
Documents
x
Download Datasheet
