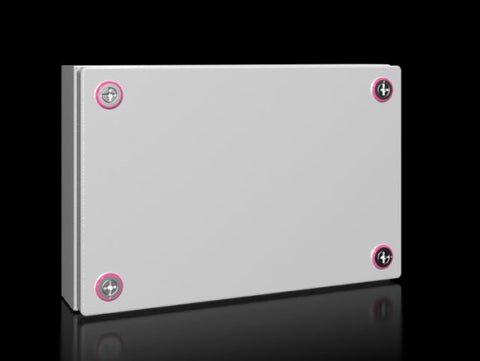

Rittal KX Terminal box, sheet steel, 300 x 200 x 80mm Rittal
Rittal KX Terminal box, sheet steel, 300 x 200 x 80mm Rittal

Rittal KX Terminal box, sheet steel, 300 x 200 x 80mm Part number 1517.000

The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Specifications
Specifications
x
Model No.KX 1517.000
MaterialCarbon steel
Surface finishDipcoat primed, powder-coated on the outside, textured paint
ColorRAL 7035
Protection category NEMANEMA 1, NEMA 3R, NEMA 4, NEMA 12
Protection category IP to EN 60 529IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
DimensionsWidth: 300 mm, Height: 200 mm, Depth: 80 mm
Material thickness - cover1.25 mm
Material thickness - enclosure1.25 mm
Base materialCarbon steel
Weight/packaging unit2.39 kg
Customs tariff number84879090
ApprovalsBureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
Documents
Documents
x
Download Datasheet
