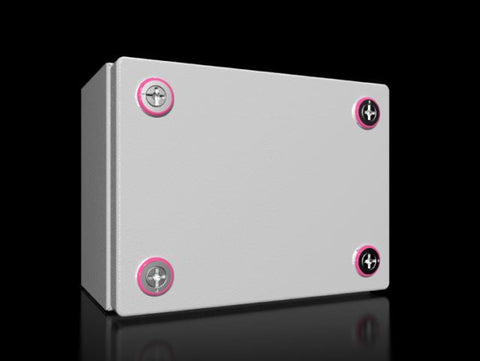

Rittal KX Terminal box, sheet steel, 200 x 150 x 120mm Rittal
Rittal KX Terminal box, sheet steel, 200 x 150 x 120mm Rittal

Rittal KX Terminal box, sheet steel, 200 x 150 x 120mm Part number 1529.000

The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Specifications
Specifications
x
Model No.KX 1529.000
Material (Housing)Carbon steel
Material (Cover)Carbon steel, all-round foamed-in PU seal
Surface finishDipcoat primed, powder-coated on the outside, textured paint
ColorRAL 7035
Protection category NEMANEMA 1, 3R, 4, 12
Protection category IPIP 66
Type rating according to UL 50EType 1, 3R, 4, 12
IK codeIK08
Dimensions (Width)200 mm / 7.87 in
Dimensions (Height)150 mm / 5.91 in
Dimensions (Depth)120 mm / 4.72 in
Material thickness - cover1.25 mm / 0.05 in
Material thickness - enclosure1.25 mm / 0.05 in
Base materialCarbon steel
Weight/packaging unit1.75 kg / 3.9 lb.
Customs tariff number84879090
EAN4028177816350
E-Number SwedenE3465201
ETIM 7.0EC000261
ECLASS 8.027180101
ApprovalsBureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
CertificatesProtection category
ExplanationsManufacturer's declaration, Declaration of conformity, Declaration of conformity UK
Documents
Documents
x
Download Datasheet
