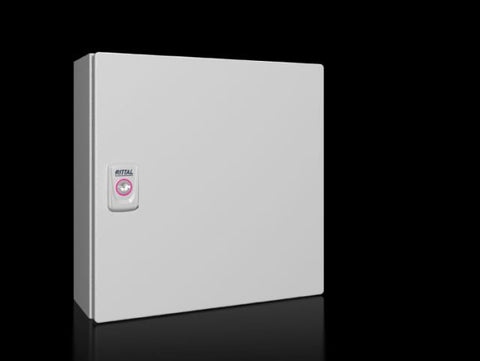

Rittal KX E-Box with door, sheet steel, 300 x 300 x 120mm Rittal
Rittal KX E-Box with door, sheet steel, 300 x 300 x 120mm Rittal

Rittal KX E-Box with door, sheet steel, 300 x 300 x 120mm Part number 1555.000

This small enclosure is made from sheet steel, providing IP66 protection and NEMA ratings for industrial use. Measuring 300 x 300 x 120 mm, it includes a mounting plate and a cam lock for secure closure, making it ideal for housing electrical components.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x
This small enclosure is made from sheet steel, providing IP66 protection and NEMA ratings for industrial use. Measuring 300 x 300 x 120 mm, it includes a mounting plate and a cam lock for secure closure, making it ideal for housing electrical components.
Specifications
Specifications
x
Model No.KX 1555.000
Material - EnclosureSheet steel
Material - DoorSheet steel, all-round foamed-in PU seal
Surface Finish - Enclosure and DoorDipcoat primed, powder-coated on the outside, textured paint
Surface Finish - Mounting PlateZinc-plated
ColourRAL 7035
Protection Category NEMANEMA 1, 3R, 4, 12
Protection Category to IEC 60 529IP 66
Type Rating to UL 50EType 1, 3R, 4, 12
IK CodeIK08
Dimensions - Width300 mm
Dimensions - Height300 mm
Dimensions - Depth120 mm
Dimensions Mounting Plate (W x H)275 mm x 285 mm
Material Thickness - Enclosure1.25 mm
Material Thickness - Door1.25 mm
Material Thickness of Mounting Plate2 mm
Weight4.95 kg
Customs Tariff Number94032080
ApprovalsBureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
CertificatesProtection category
Manufacturer's DeclarationDeclaration of conformity
Declaration of Conformity UKYes
Documents
Documents
x
Download Datasheet
