Rittal KX E-Box with door, sheet steel, 200 x 400 x 120mm Rittal
Rittal KX E-Box with door, sheet steel, 200 x 400 x 120mm Rittal

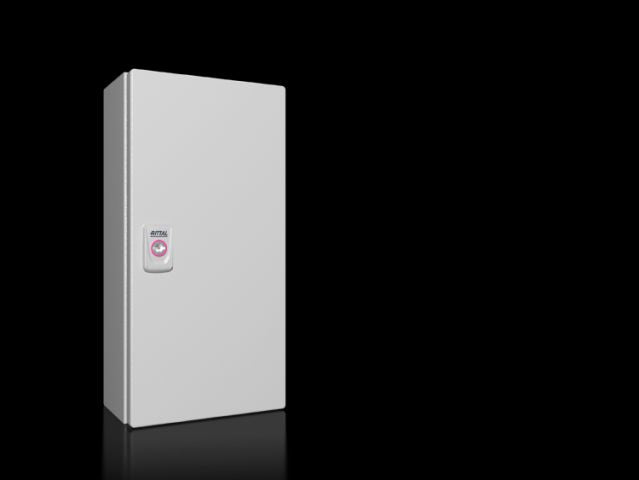

Rittal KX E-Box with door, sheet steel, 200 x 400 x 120mm Part number 1550.000

This E-Box enclosure, made of sheet steel, provides IP66 and NEMA 4 protection. With a zinc-plated mounting plate and cam lock, it is designed for secure housing of components in demanding conditions.
Vendor: Rittal
Rubicon Industrial Technology is an authorised South African distributor for Rittal.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This E-Box enclosure, made of sheet steel, provides IP66 and NEMA 4 protection. With a zinc-plated mounting plate and cam lock, it is designed for secure housing of components in demanding conditions.
Specifications
Specifications
x
Model No.KX 1550.000
Enclosure MaterialSheet steel
Door MaterialSheet steel, all-round foamed-in PU seal
Surface finishDipcoat primed, powder-coated on the outside, textured paint
Mounting plate MaterialZinc-plated
ColourRAL 7035
Protection category NEMANEMA 1, 3R, 4, 12
Protection category to IEC 60 529IP 66
Type rating to UL 50EType 1, 3R, 4, 12
IK CodeIK08
Dimensions (W x H x D)200 mm x 400 mm x 120 mm
Mounting plate dimensions (W x H)175 mm x 385 mm
Material thickness - enclosure1.25 mm
Material thickness - door1.25 mm
Material thickness of mounting plate2 mm
Number of locks1
Weight4.62 kg
ApprovalsBureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed)
Documents
Documents
x
Download Datasheet
