Description

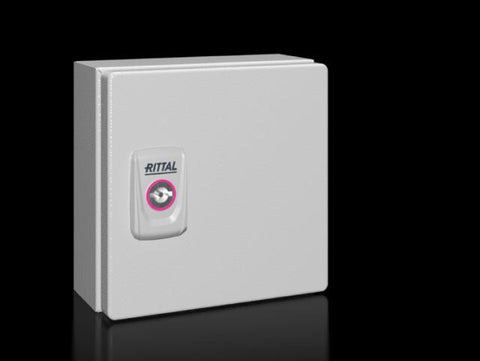

xThis small E-Box in sheet steel offers IP66 and NEMA 4 protection. It includes a mounting plate, cam lock, and is dipcoat primed with a powder-coated finish, making it ideal for secure installations in harsh environments.
Specifications
x| Model No. | KX 1551.000 |
| Material (Enclosure) | Sheet steel |
| Material (Door) | Sheet steel, all-round foamed-in PU seal |
| Surface Finish | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting Plate Surface Finish | Zinc-plated |
| Colour | RAL 7035 |
| Protection Category NEMA | NEMA 1, 3R, 4, 12 |
| Protection Category to IEC 60 529 | IP 66 |
| Type Rating to UL 50E | Type 1, 3R, 4, 12 |
| IK Code | IK08 |
| Dimensions (Width) | 150 mm |
| Dimensions (Height) | 150 mm |
| Dimensions (Depth) | 80 mm |
| Dimensions (Mounting Plate W x H) | 125 mm x 135 mm |
| Material Thickness (Enclosure) | 1.25 mm |
| Material Thickness (Door) | 1.25 mm |
| Material Thickness (Mounting Plate) | 2 mm |
| Weight | 1.49 kg |
| Customs Tariff Number | 94032080 |
| Approvals | Bureau Veritas, DNV-GL, Lloyds Register of Shipping, UL + C-UL (listed) |
| Protection Category (UL 508A) | Type 4 |
