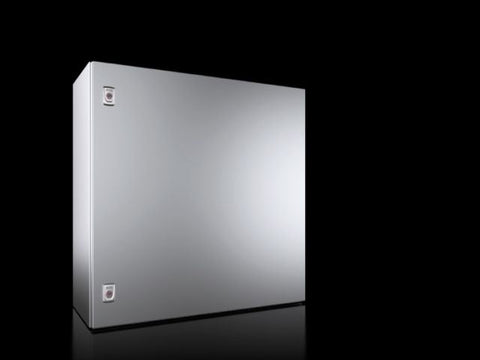

Rittal AX Compact enclosure, stainless steel, 760x760x300mm

Product Overview

The AX 1014.000 is a large robust stainless steel basic enclosure designed for demanding industrial applications requiring superior environmental protection and system flexibility with maximum capacity. This single-door wall-mounted enclosure features high-grade stainless steel 1.4301 (AISI 304) construction with integrated mounting plate and an innovative integral locator system that enables fast, reliable system configuration without drilling, providing substantial interior space and increased depth for complex installations.

Key Features:

• Stainless Steel Construction: High-grade 1.4301 (AISI 304) material for superior corrosion resistance
• Superior Protection: IP 66 and multiple NEMA ratings (1, 3R, 4, 4X, 12) plus UL Type ratings
• Impact Resistance: IK10 mechanical protection rating for maximum durability
• Integral Locator System: Patented system enabling extensive configuration without drilling
• All-Round Sealing: Foamed-in PU seal on door for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle per VDI
• Dual Locking System: Two cam locks with 3mm double-bit insert for enhanced security
• Heavy-Duty Construction: Thicker materials with 2mm door and 1.5mm enclosure thickness
• Extended Depth: 300mm depth for larger component installations
• QR Code Identification: Printed on body, cover and rating plate for easy product identification

Technical Specifications:

• Article Number: AX 1014.000
• Dimensions (W x H x D): 760 mm x 760 mm x 300 mm
• Mounting Plate Dimensions: 705 mm x 735 mm
• Material: Stainless steel 1.4301 (AISI 304)
• Material Thickness - Enclosure: 1.5 mm
• Material Thickness - Door: 2 mm
• Mounting Plate Thickness: 2.5 mm
• Surface Finish: Brushed, grain 400
• Lock Type: Two cam locks with 3mm double-bit insert
• Net Weight: 39 kg
• EAN: 4028177815018

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Ratings: NEMA 1, 3R, 4, 4X, 12
• UL Type Ratings: Type 1, 3R, 4, 4X, 12 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: DIN 43668 (lock insert), VDI (opening angle)
• ETIM 9: EC000261
• ECLASS 8.0: 27180101

Applications:

Essential for large-scale industrial applications requiring maximum environmental protection with stainless steel durability and extensive system flexibility. Ideal for food and beverage processing, pharmaceutical manufacturing, chemical processing plants, marine environments, outdoor installations, complex control systems, heavy-duty machinery controls, and any application where corrosion resistance, IP 66 protection, modular system expansion capabilities, enhanced security, and substantial interior capacity with extended depth are critical requirements.
