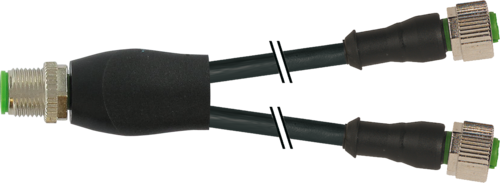

Murr Y-distributor, M12, male/female 0°, A-coded, black, 5m

Product Overview

This M12 Y-distributor connection cable (SKU: 7000-40701-6330500) features one male M12 straight (0°) connector branching to multiple female M12 straight (0°) connectors, all with A-coding for reliable signal distribution in industrial automation applications. The 5-meter cable with black PUR jacket provides robust connectivity for sensor/actuator distribution networks.

Connector Configuration:

• Input connector: M12, 3-pole, 0° straight, A-coded (male)
• Output connectors: Multiple M12, 3-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

Y-Distributor Design:

• Configuration: One input to multiple outputs
• Topology: Point-to-multipoint distribution
• Signal splitting: Parallel connection distribution
• Network expansion: Reduces wiring complexity
• Installation efficiency: Single cable run to multiple devices

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.34 mm²
• Color: Black
• Length: 5 meters
• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for distribution applications

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for industrial automation environments requiring signal distribution from one M12 source to multiple M12 devices. Ideal for sensor networks, actuator control systems, and applications where one control signal needs to be distributed to multiple devices. Reduces installation complexity by eliminating the need for multiple separate cable runs from the control system to individual sensors or actuators.
