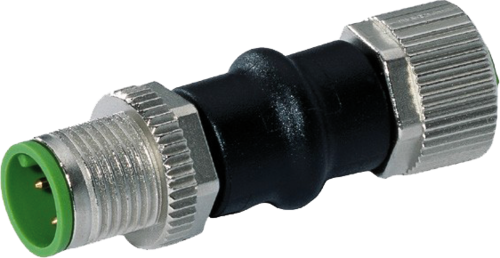

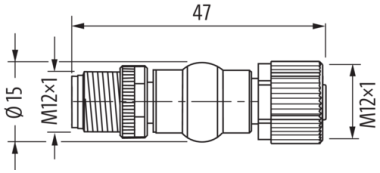

Murr Adaptor M12 male/ M12 female, 5-pole

Product Overview

This M12 adapter (SKU: 7000-42241-0000000) features male and female M12 straight connectors with A-coding and 5-pole configuration for direct signal pass-through in industrial automation systems. The compact adapter enables extension of M12 connections and provides a reliable interface for system integration and cable management.

Connector Configuration:

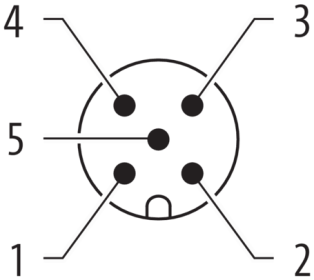

• Input: M12, 5-pole, 0° straight, A-coded (male)

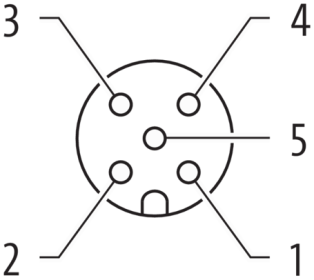

• Output: M12, 5-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, self-securing
• Protection: IP67 when mated
• Housing: Impact-resistant plastic

Adapter Design:

• Configuration: M12 male to M12 female pass-through
• Topology: Direct signal transmission
• Signal routing: Pin-to-pin connectivity
• Installation: Inline connection extension
• Network continuity: Seamless signal pass-through

Electrical Characteristics:

• Operating voltage: 60V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: 5-contact pass-through
• Contact material: Nickel-plated contacts
• Circuit diagram: Direct pin mapping

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• Media compatibility: Individual testing recommended

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Locking mechanism: Threaded with self-securing design
• Material compliance: RoHS compliant

Certifications & Compliance:

• IP67 protection rating
• A-coded for standard M12 compatibility
• Threaded locking mechanism
• RoHS Certificate of Compliance available

Applications

Designed for industrial automation systems requiring M12 connection extension or signal pass-through functionality. Ideal for cable management, system integration, connection troubleshooting, and applications where M12 connectors need to be extended or redirected. Perfect for maintenance access points and temporary connections in sensor and actuator networks.
