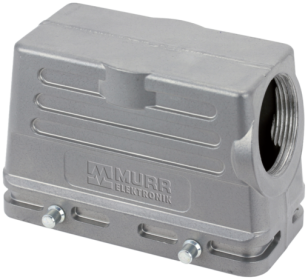

Murr B16 Hood, low profile, double locking, side entry M25

Product Overview

Heavy-duty connector hood housing (SKU: 70MH-GTFNQ-A02C000) designed for industrial automation and electrical distribution applications. This B16 low-profile hood housing provides IP65 environmental protection with double locking lever mechanism and side cable entry configuration, offering enhanced security and reliable cable management for modular heavy-duty connector systems in demanding industrial environments.

Key Features

• B16 size hood housing with low-profile design for space-constrained applications
• IP65 protection rating when properly assembled and secured
• Double locking lever mechanism for enhanced security and reliability
• Side cable entry with M25 threaded connection
• Aluminum die-cast construction for durability and strength
• Powder-coated surface finish for corrosion resistance
• Minimum 500 mating cycles for reliable long-term use
• Compatible with Modlink Heavy connector inserts

Technical Specifications

• Housing Type: Hood (low-profile design)
• Size: B16 format
• Protection Rating: IP65 (EN 60529) when properly assembled
• Material: Aluminum die-cast construction
• Surface Finish: Powder-coated
• Cable Entry: Side entry with M25 thread
• Locking Mechanism: Double locking lever system
• Locking Material: Galvanized steel
• Gasket Material: NBR (Nitrile Butadiene Rubber)
• Operating Temperature: Standard industrial temperature range

Applications

• Critical industrial equipment connections requiring enhanced security
• Control panel external connections with high reliability requirements
• Manufacturing equipment electrical interfaces with higher connector density
• Machine tool electrical connections requiring secure locking
• Process control system installations with safety-critical connections
• Heavy-duty equipment requiring maximum connection reliability and side cable routing

Compliance & Standards

• IP65 protection rating per EN 60529
• Industrial grade construction for demanding environments
• Minimum 500 mating cycles for reliable operation
• Double locking mechanism for enhanced connection security
• Low-profile design for space-constrained installations
• Technical data guaranteed when used with Murrelektronik components

Download existing graphical data for this product:

Product Datasheet
