Murr Analog coupler component, screw terminal, 10VDC, 20mA

Product Overview

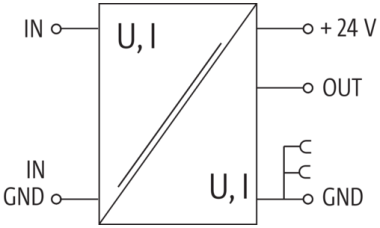

The MIUW ANALOG COUPLER COMPONENT provides professional signal conversion between 4...20 mA input signals and 0...10 V DC output signals for industrial automation applications. This active interface technology component features screw terminal connections and is designed for DIN rail mounting, offering reliable signal conditioning and isolation in control cabinet installations requiring precise analog signal conversion.

Key Features

• Input: 4...20 mA analog current signal
• Output: 0...10 V DC analog voltage signal, 20 mA
• Screw terminal connections (6.2 mm)
• DIN rail mounting (EN 60715)
• Professional signal conversion and conditioning
• Industrial-grade construction for control cabinet applications

Technical Specifications

• Series: MIUW Analog Coupler Components
• Category: Analog Converter
• Article Number: 44213
• Input Signal: 4...20 mA
• Output Signal: 0...10 V DC, 20 mA
• Terminal Type: 6.2 mm screw-type terminals
• Mounting: DIN rail snap-on mounting

Signal Conversion Characteristics

• Input Range: 4...20 mA analog current
• Output Range: 0...10 V DC analog voltage
• Output Current: 20 mA capability
• Signal Conditioning: Professional analog signal conversion
• Isolation: Electrical isolation between input and output
• Accuracy: Industrial-grade conversion precision

Installation Details

• Mounting Type: Snap-on DIN rail mounting (EN 60715)
• Terminals: 6.2 mm screw-type terminal connections
• Wiring: Professional screw terminal interface
• Assembly: Ready-to-install converter component
• Integration: Direct mounting in control cabinets

Environmental Specifications

• Operating Voltage: 24V DC ±20% (filtered)
• Construction: Industrial-grade housing and components
• Durability: Designed for demanding control cabinet environments
• Operating Conditions: Standard industrial temperature ranges
• Protection: Professional enclosure for electrical safety

Applications

• Industrial process control signal conversion
• Automation system analog signal conditioning
• Control cabinet signal interface applications
• Manufacturing equipment signal processing
• Process monitoring and control systems
• Machine automation analog signal conversion
• Industrial instrumentation signal conditioning

Standards and Compliance

• Mounting Standards: EN 60715 DIN rail compatibility
• Signal Standards: Industrial analog signal specifications
• Quality Standards: Murrelektronik industrial quality standards
• Safety Compliance: Industrial automation safety requirements
• Electrical Standards: Professional signal conversion requirements

Compatibility

• Compatible with 4...20 mA current loop sensors
• 0...10 V DC analog input devices
• Industrial control systems and PLCs
• Process control instrumentation
• Automation equipment analog interfaces
• Standard DIN rail mounting systems

Design Features

• Professional Conversion: Reliable 4...20 mA to 0...10 V conversion
• Screw Terminals: Secure 6.2 mm screw-type connections
• DIN Rail Mounting: Standard snap-on installation
• Signal Isolation: Electrical isolation for system protection
• Industrial Construction: Robust design for control cabinet use
• Easy Installation: Direct mounting and wiring capability

Download existing graphical data for this product:

Product Specification Sheet
